- 4 kinds of gels with different sizes, and two kinds are optional.
- Optional HT10LG electrophoresis monitor
- 99.99% high purity platinum electrode

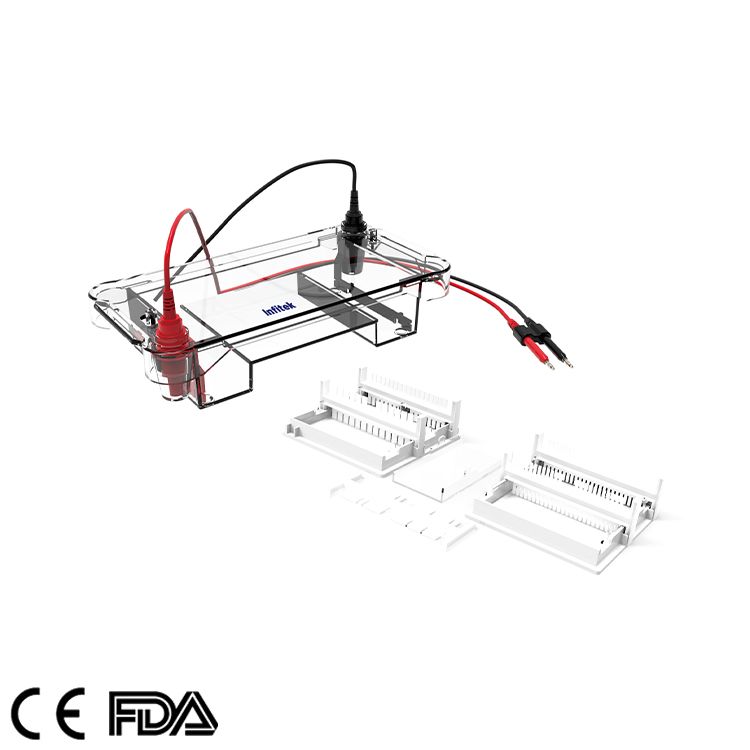

Agarose Horizontal Electrophoresis Tank, GEP-HH-SUB02
Description
Usage:
This product is suitable for nucleic acid electrophoresis, separation and identification of DNA, and determination of its molecular weight.
Features:
- Polycarbonate injection molding at one time, no leakage.
- Can make 4 kinds of gels with different sizes, and two kinds of gel makers are optional.
- Limit function, will not make the positive and negative electrodes installed backwards.
- Optional HT10LG electrophoresis monitor can be used in the electrophoresis process.
- Time monitoring electrophoresis band.
- The electrode can be replaced for easy maintenance.
- 99.99% high purity platinum electrode has the best conductivity and corrosion resistance.
Specifications
| Basic parameters: | |
| Overall dimensions (l*w*d) | 270*140*80mm |
| Gel area (w* l) | 120mm*120mm, 120mm*60mm, 60mm*120mm, 60mm*60mm |
| Sample comb: | 2+3 teeth /6+13 teeth /8+18 teeth /11+25 teeth (sample can be added by gun arrangement) |
| Total buffer capacity | about 700 ml. |
Deploy
| name | specifications | quantity |
| Main body groove (upper cover) | one | |
| Main tank (lower tank) | one | |
| Electrode | Positive pole (red) | one |
| Negative electrode (black) | one | |
| Glue maker | big | one |
| fission | one | |
| Large tray | 120*120 | one |
| Middle tray | 120*60 | one |
| 60*120 | one | |
| Small tray | 60*60 | two |
| Sample comb | 2/3 teeth | one |
| 6/13 teeth | two | |
| 8/18 teeth | two | |
| 1/25th tooth | two | |
| wireway | one |
