- Removable breadboard
- DC power supply
- Function generator
- Two pulse switches
- 2 1/2 inch 8-ohm 0.25W speaker

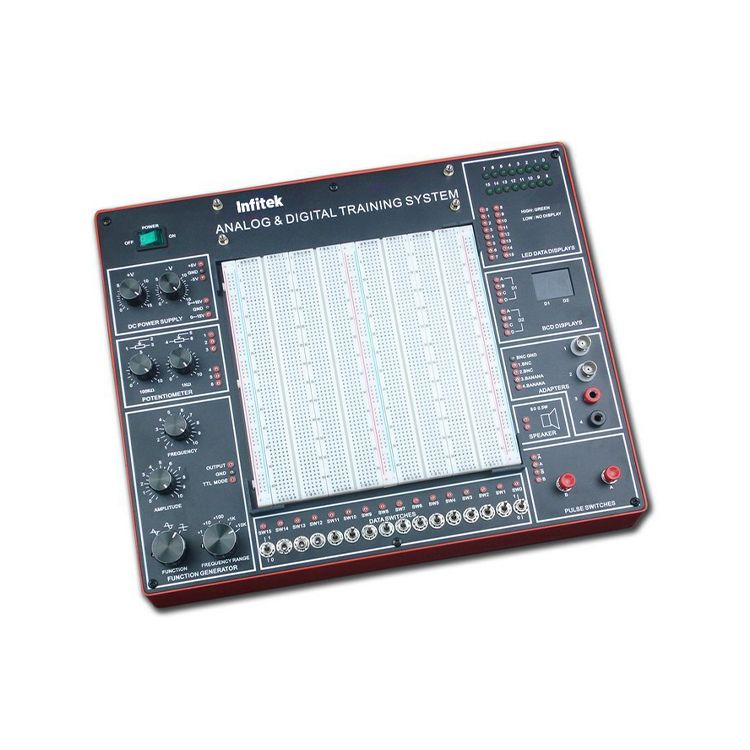

Analog/Digital Pcb Board/ Circuit Board/ Circuit Training System, CTS-D-7000
Description
High level, high-quality digital-analog trainer
Combines all essential functions of analog and digital experiment
With removable breadboard, DC power supply, function generator, two pulse switches, 2 1/2 inch 8-ohm 0.25W speaker and etc.
Specifications
| SOLDERLESS BREADBOARD | |
| SOLDERLESS BREADBOARD | Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).It can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students. |
| DC POWER SUPPLY | |
| Ａ．Fixed DC output | +5V, 1A |
| Ｂ．Fixed DC output | -5V, 1 A. |
| Ｃ．Variable DC output | 0V to +15V, 1 A. |
| Ｄ．Variable DC output | 0V to –15V, 1 A. |
| POTENTION METERS | |
| A. Variable resistor VR1 | 1kΩ |
| B. Variable resistor VR2 | 100kΩ |
| FUNCTION GENERATOR | |
| Frequency range | 1Hz－10Hz |
| 10Hz－100Hz | |
| 100Hz－1kHz | |
| 1kHz－10kHz | |
| 10kHz－100kHz | |
| Amplitude | Sine wave output：0－10 Vpp variable |
| Triangle wave output：0－10 Vpp variable | |
| Square wave output：0－10 Vpp variable | |
| TTL mode output：4 Vpp | |
| TWO DIGITS OF 7 SEGMENT LED DISPLAY | |
| TWO PULSE SWITCH | |
| TWO PULSE SWITCH | 2pcs pushbuttons contain switches debouncer for eliminating the bounce caused by switch from“open” to “close”or from“close” to“open”position. |
| SIXTEEN DATA SWITCHES | |
| SIXTEEN DATA SWITCHES | 16pcs toggle switches and corresponding output point.When switch is set at “down”position,the output isLO level; contrarily, it is to be HI level while setting at “up”position. |
| SPEAKER | |
| SPEAKER | 2-1/2 inch diameter, 8 ohm/0.5W to be used for load. |
| FOUR CHANNEL ADAPTOR | |
| FOUR CHANNEL ADAPTOR | Both of the two banana sockets’ and two BNC jacks’ point tips are changeable. It is suitable for M21-7000 to be connected with peripherals. |
| SIXTEEN BITS LED DISPLAY | |
| SIXTEEN BITS LED DISPLAY | 16 red LED’s separate input terminals. The LED will be lighted up when input is at “HI level” ,and it will be turned off when it is at no input or at “LO level”. |
| UNIVERSAL CONNECTOR FIXED HOLDER | |
| It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors, | (1) Straight header 60 pin |
| which are available | (2) Card edge connector 2.54mm 62pin |
| (3) D sub25 pin connector, male & female | |
| (4) Card edge connector 3.96mm 56pin | |
| (5) Dip sockets connector 28 pin & 40 pin | |
| OTHER STANDARD ACCESSORIES | (1) Power cord |
| (2) Pin : 10pcs | |
| (3).User manual | |
| DIMENSIONS & WEIGHT | 258 x 95 x 334mm(WxHxD) |
| Approx 4.5kg | |
