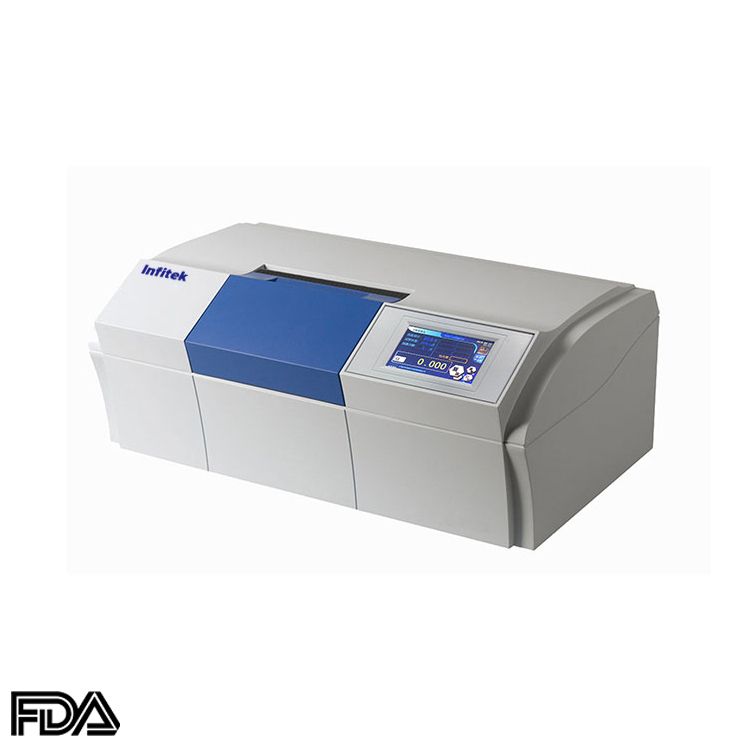

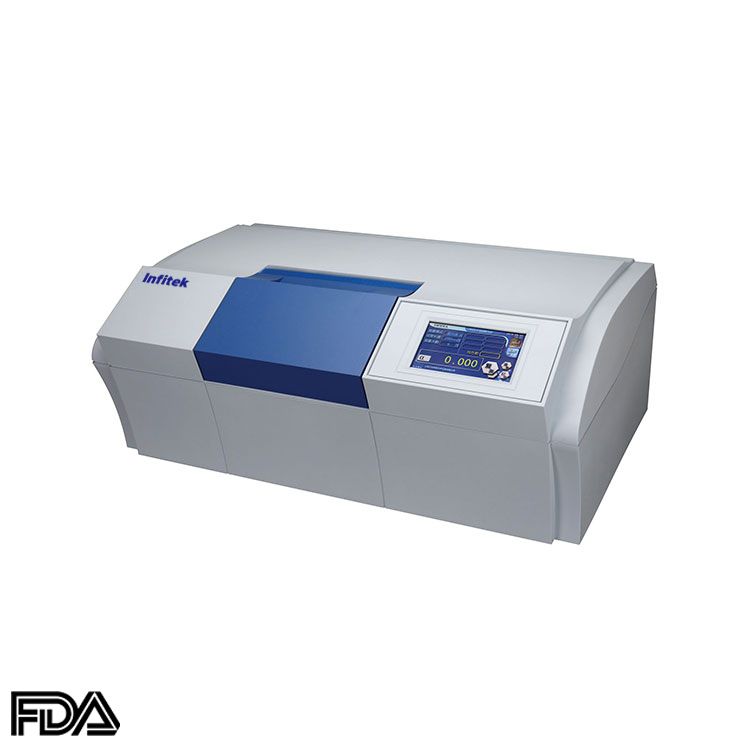

Automatic Polarimeter, POL-3

Description

Photoelectric test and microcomputer control.
Measuring specific rotation, optical rotation, concentration and sugar degree.
Automatic repetition-measurement for 6 times, and calculation of averagevalue and means square root.

Parameters/Model	POL-3
Measurement modes	Optional rotation, specific rotation, sugar degree, concentration
Light source	LED + interference filter
Wavelength	589.44 nm
Measurement range	±45° (optical rotation), ±120° Z(sugar)
Accuracy	±(0.01+measuring value×0.05%)° (optical rotation)
Repeatability	≤0.003° (optical rotation)
Display	Color Touch LCD
Minimum indicating value	0.001°
Test tubes	100mm/200mm (regular)
Transmission	10%
Interface	USB
Weight (Gross)	36kg
Overall Dimensions	730mm×480mm×470mm
