- Repeatabilityerror≤±1%
- High-brightness digital display
- Stability:Automatic zero calibration, torque drift ≤±1%/4h
- Optional built-in printer (or Bluetooth, RS232, analog interface)

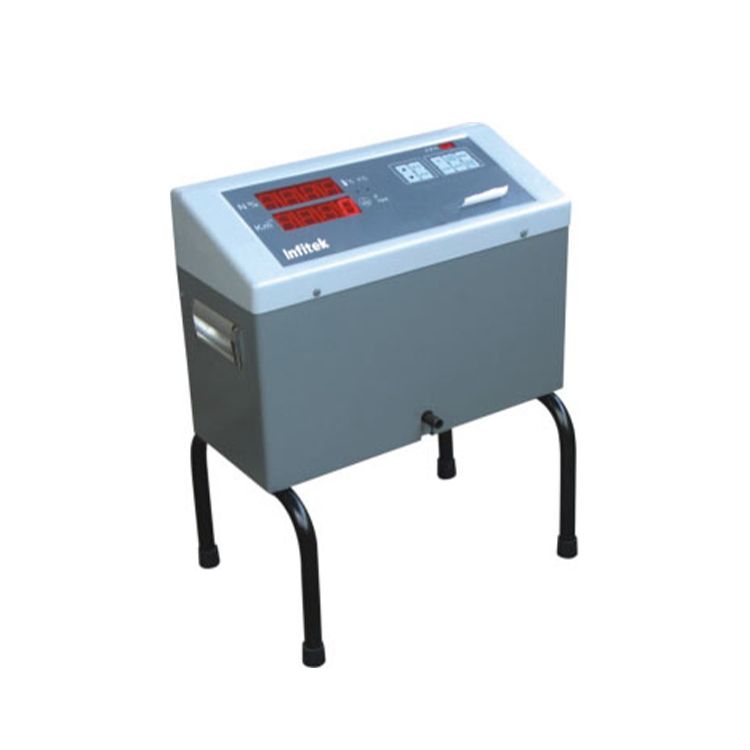

Automobile Exhaust Analyzer, With Opacimeter, AEA-H601D
Description
The machine adopts an integrated structure design, adopts split flow sampling technology, and can measure smoke when the diesel engine accelerates, decelerates and stabilizes.
Features
- High-brightness digital display, German imported movement.
- The data is automatically linearized, and the opacity N, light absorption coefficient K and corresponding filter paper smoke value SF can be displayed.
- The optical system is protected from contamination by “air curtain” technology.
- The automatic constant temperature control of the testing chamber can prevent condensation from affecting the test accuracy.
- Automatic time display, optional speed measurement and oil temperature measurement.
- Automatically diagnose and display the unit where a fault occurs.
- Optional built-in printer (or Bluetooth, RS232, analog interface).
Specifications
| Model | AEA-H601D |
| Measuring Range | Opacity N: 0~100% (equivalent to smoke value 0~10FSN) |
| Light absorption coefficient K:0～16.06m-1 | |
| Speed: 0-9990rpm | |
| Oil temperature: 0-150℃ | |
| Indicating Error | ≤±2%(Measurement value) |
| Stability | Automatic zero calibration, torque drift ≤±1%/4h |
| Repeatability | Repeatability error≤±1% |
| Resolution | N:0.1% |
| K:0.01m-1 | |
| Speed:10rpm | |
| Oil temperature: 0.1℃ | |
| Output Mode | Digital direct-reading display, a printer can be attached to print the maximum value of smoke concentration (darkness), test time, date, etc. Interface can be attached to connect with computer. |
| Ambient Condition | Temperature: -5～50℃, relative humidity≤90% |
| Electricity | AC100-240V, 50/60Hz or DC12V (Optional power inverter) |
| Power Consumption | 150VA |
| External Dimension (D*W*H) | 160*400*480mm |
| Net Weight | 8kg |
