- Settable cell constant
- 6-inch LCD screen
- IP54 waterproof
- Manual temperature compensation

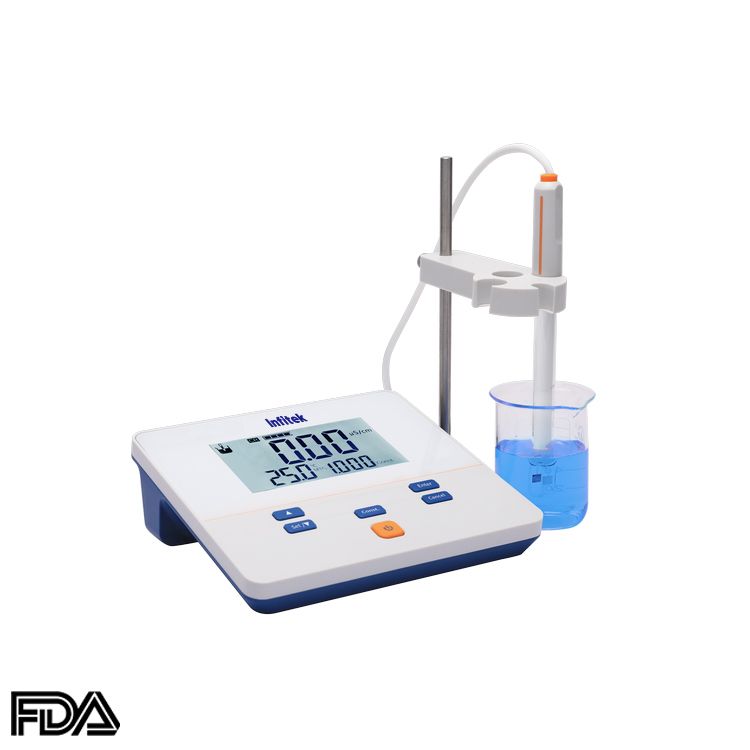

Benchtop Conductivity Meter, CON-B100B
Description
The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.
Advantages
6-inch LCD display screen.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
Cell constant is settable.
Manual temperature compensation ensures accurate results.
Specifications
| Model | CON-B100B | |
| Conductivity | Range | 0.00 μS/cm to 100 mS/cm |
| Resolution | 0.01 μS/cm minimum,
various with range selection |
|
| Accuracy | ±1.5% FS | |
| Reference Temperature | 25 ºC | |
| Measurement | Reading Mode | Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | MTC | |
| Inputs | Conductivity Probe | 5-pin aviation connector |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
| IP Rating | IP54 | |
| General | Electricity | AC Adapter, 100-240V AC input, DC9V output |
| Dimensions | 200×160×63 mm | |
| Weight | 600g | |
