- Intelligent operation system
- 7.0 inch LCD screen
- IP54 waterproof.
- Support for USB or RS-232 communication

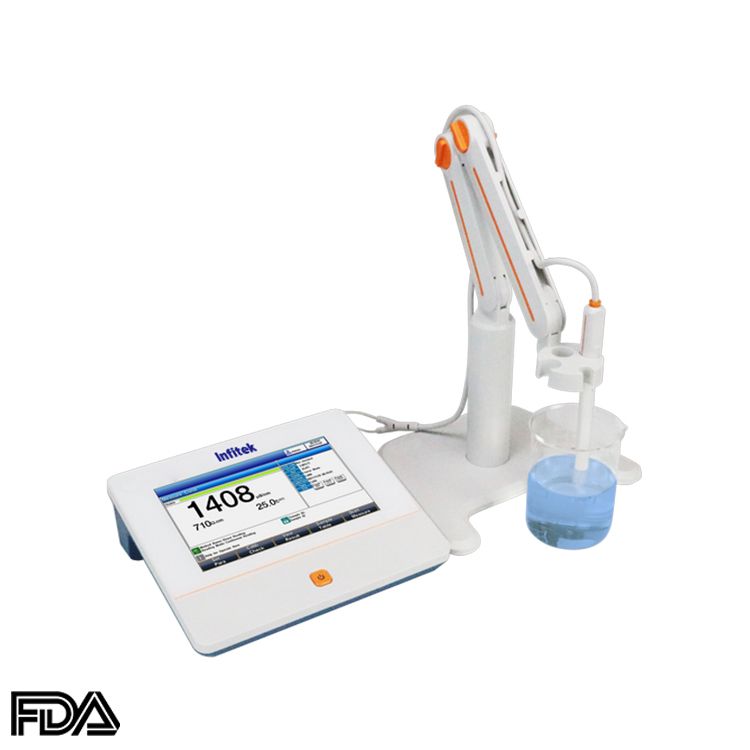

Benchtop Conductivity Meter, CON-B500T
Description
The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environments.
Advantages
7.0 inches color high contrast LCD touch screen.
Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
The multi-reading feature allows auto-read, timed-read, and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Data Storage: 1000 sets for each parameter (GLP-compliant).
The data analysis feature helps user review, compare and recalculate results.
Support for USB or RS-232 communication.
The reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-5 points calibration with Standard Recognition.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Specifications
| Model | CON-B500T | |
| Conductivity | Range | 0.000 μS/cm to 2000 mS/cm |
| Resolution | 0.001 μS/cm minimum,
various with range selection |
|
| Accuracy | ±0.5% FS | |
| Reference Temperature | 5, 10, 15, 18, 20, 25 ºC | |
| Calibration Points | Up to 5 | |
| Calibration Reminder | Yes | |
| Standard Recognition | 10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm
146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm |
|
| Resistivity | Range | 5.00 Ω·cm~100.00 MΩ·cm |
| Resolution | 0.01 Ω·cm minimum | |
| Accuracy | ±0.5% FS | |
| TDS | Range | 0.000~1000 ppt |
| Resolution | 0.001 ppm minimum, changed with range | |
| Accuracy | ±0.5%FS | |
| Salinity | Type | NaCl |
| Range | 0~80.0 ppt | |
| Resolution | 0.1 ppt | |
| Accuracy | ±1 ppt | |
| Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Accuracy | ±0.1 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes | |
| Log Management | Yes | |
| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| RS 232 | printer, auto-sampler | |
| Display options | Backlight | Yes |
| Auto Shutdown | 1~60 min, off | |
| IP Rating | IP54 | |
| Date and Time | Yes | |
| General | Electricity | AC Adapter, 100-240V AC input, DC24V output |
| Dimensions | 220×195×68 mm | |
| Weight | 950g | |
