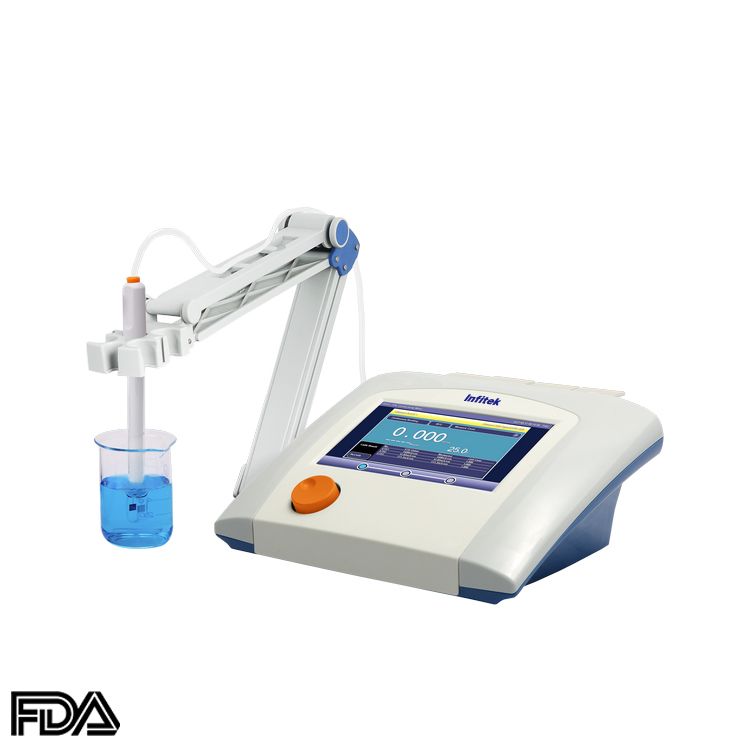

Benchtop Conductivity Meter, CON-B600L

  1. Intelligent operation system
  2. 7.0 inch LCD screen
  3. IP54 waterproof.
  4. Support for USB or RS-232 communication

Share the product

Description

The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.

Advantages
7.0 inches color high contrast LCD touch screen.
Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-5 points calibration with Standard Recognition.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).

Specifications

Model CON-B600L
Conductivity Range 0.000 μS/cm to 3000 mS/cm
Resolution 0.001 μS/cm minimum, various with range selection
Accuracy ±0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Standard Recognition 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm
Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.000 mg/L~1000 g/L
Resolution 0.001ppm minimum, changed with range
Accuracy ±0.5%FS
Salinity Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ±0.1%
Temperature Range -5 to 130 ºC
Unit ºC
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs Temp. Probe 6-pin Mini-DIN
Conductivity Probe 8-pin Mini-DIN
Outputs USB, RS 232 USB 2.0 flash memory device, printer, PC
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Electricity AC Adapter, 100-240V AC input, DC24V output
Dimensions 280×280×130 mm
Weight 2500g
