- Volume Range: 0.4mL to 60mL
- Digital display volume adjustable
- Piston is made of 99.7% high-purity ceramic.

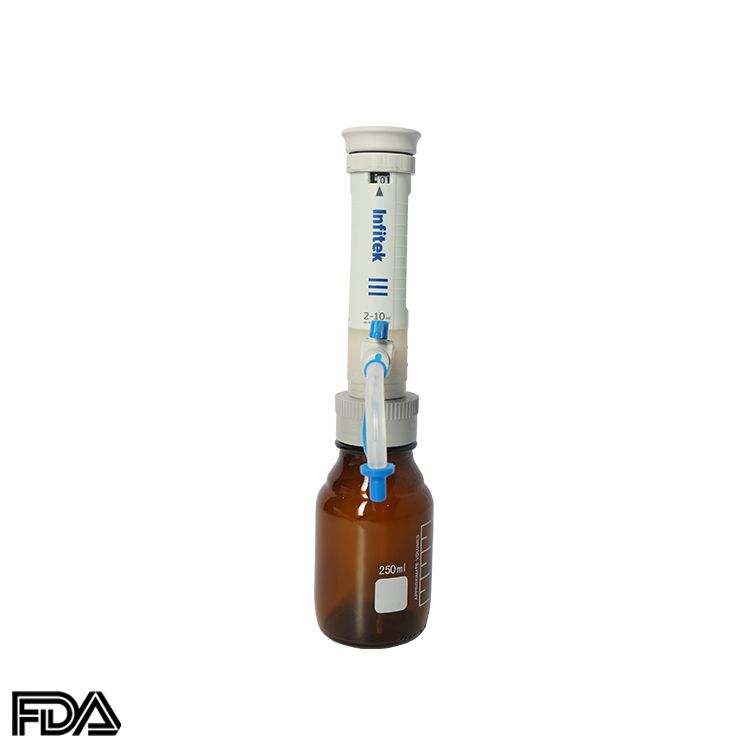

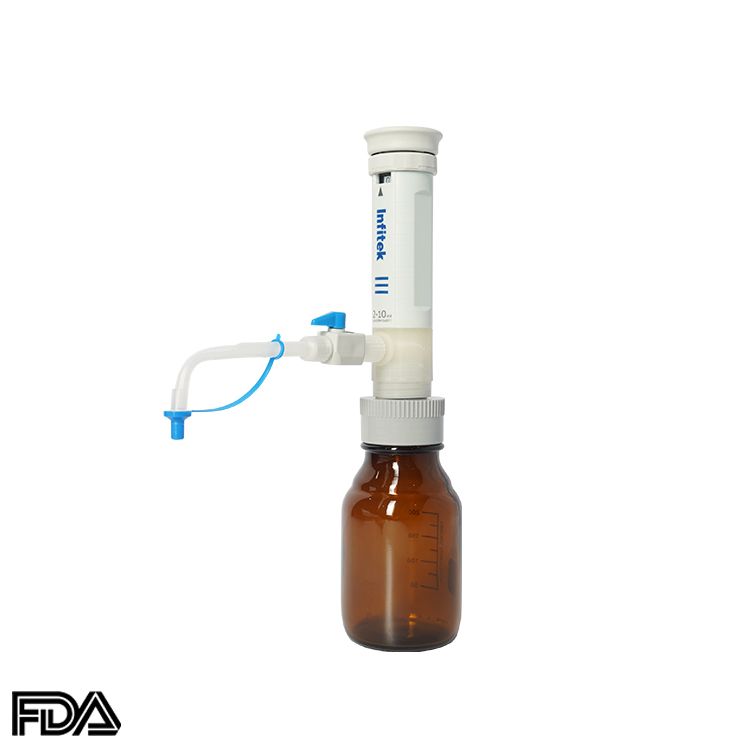

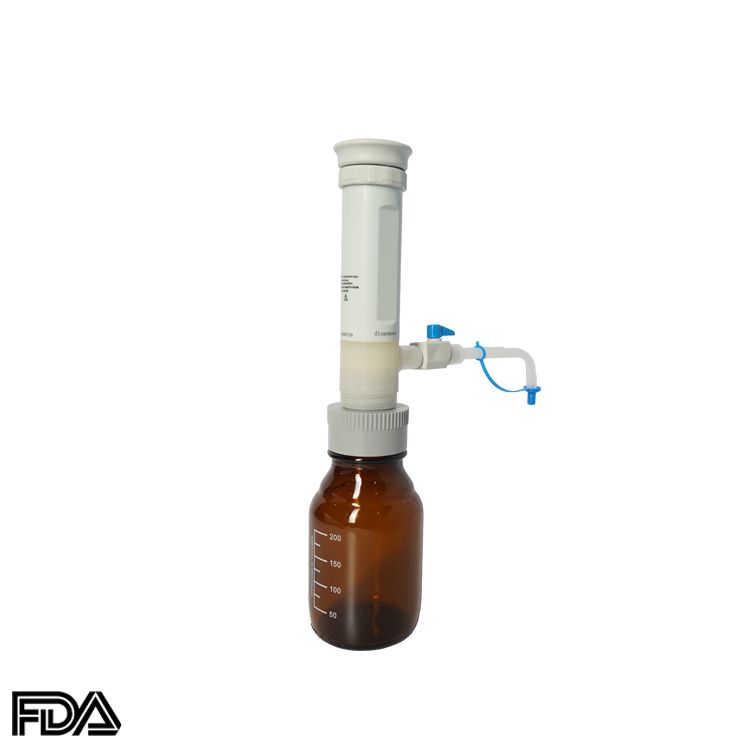

Bottle Top Dispenser, DISP-S60
Description
Application
Suitable for almost all reagents such as strong acids, strong bases, salts and organic solvents (except HF).
Features
- Piston is made of 99.7% high-purity ceramic.
- The parts in contact with the liquid are made of wear-resistant and chemical-resistant materials.
- The discharge valve is made of 316 stainless steel spring, which is smooth, high temperature resistant, chemical corrosion resistant and wear resistant.
- The volume range is from 0.4mL to 60mL, and the digital display volume is adjustable to meet various liquid separation requirements.
- Numerical positioning is not easy to shift, effectively reducing visual errors, easy to read, and ensuring high accuracy of data.
- The whole machine can be sterilized under high temperature and high pressure at 121℃.
Specifications
| Cat.No. | Volume Range （mL） | Graduation（mL） | Test Volume
(mL) |
Measurement Error | |||
| System Error | Random Error | ||||||
| (%) | (μL) | (%) | (μL) | ||||
| 6010001 | 0.4-2 | 0.05 | 0.4 | 2.5 | 10 | 0.5 | 2 |
| 1 | 1 | 10 | 0.2 | 2 | |||
| 2 | 0.5 | 10 | 0.1 | 2 | |||
| 6010002 | 1-5 | 0.1 | 1 | 2.5 | 25 | 0.5 | 5 |
| 2.5 | 1 | 25 | 0.2 | 5 | |||
| 5.0 | 0.5 | 25 | 0.1 | 5 | |||
| 6010003 | 2-10 | 0.25 | 2 | 2.5 | 50 | 0.5 | 10 |
| 5 | 1 | 50 | 0.2 | 10 | |||
| 10 | 0.5 | 50 | 0.1 | 10 | |||
| 6010004 | 5-30 | 0.5 | 5 | 3 | 150 | 0.5 | 25 |
| 15 | 1 | 150 | 0.2 | 30 | |||
| 30 | 0.5 | 150 | 0.1 | 30 | |||
| 6010005 | 10-60 | 1 | 10 | 3 | 300 | 0.5 | 60 |
| 30 | 1 | 300 | 0.2 | 60 | |||
| 60 | 0.5 | 300 | 0.1 | 60 | |||
