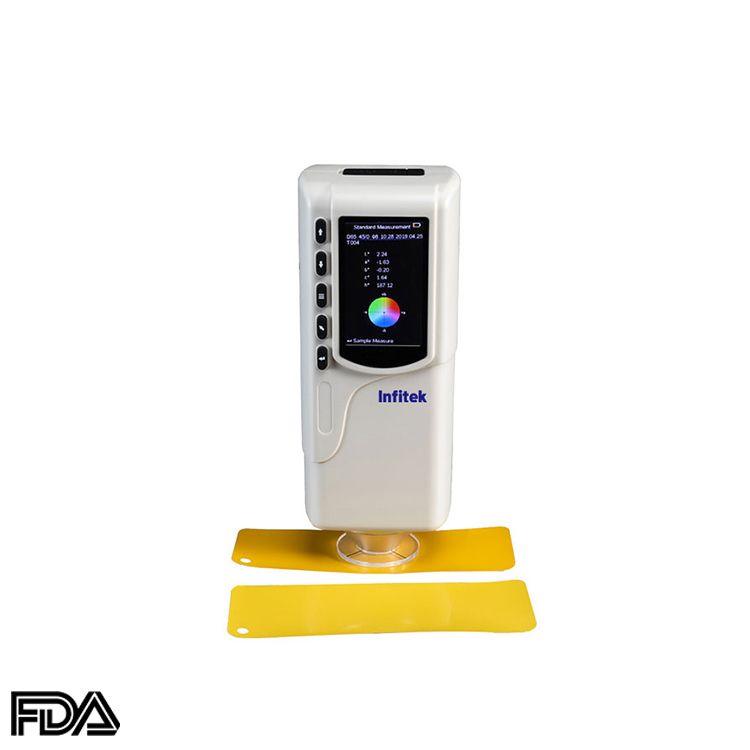

Portable Colorimeter, SP-CLR145

Plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic
New 45°/0° Optical Path Design
8mm Measuring Aperture
Double Locating: Illuminating locating and precise cross locating

Description

1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.

2. Double Locating: Illuminating locating and precise cross locating.

3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

4. New 45°/0° Optical Path Design: Significantly improves the measurement stability and precision.

5. 8mm Measuring Aperture.

6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

7. Configure CQCS3 software. Connects PC computer to realize more functions.

8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

9. Hand-head structure: small and convenient; makes the measurement easier.

10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

Model	SP-CLR145
Illuminating/Viewing Geometry	45°/0°
Measuring Aperture	8mm
Measurement End-face	Large stable end face and small concave-convex end face
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Color Space	CIELabCh* CIELab* CIEXYZ
Color Difference Formula	ΔEab ΔLab ΔECh*
Light Source	D65
Light Source Device	LED blue light excitation
Errors Between Each Equipment	≤0.80ΔE*ab
Storage	100pcs standards 20000pcs samples
Repeatability	ΔE*ab 0.08 Average of 30 measurements of standard white plate
Net/ Gross Weight	1/ 1.75kg
Dimension	205×67×80 mm
Packaging Size	380300170mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	The first charging time is 8 hours–100% electricity
PC Software	CQCS3 Software
Printer (optional)	Miniature thermal printer
