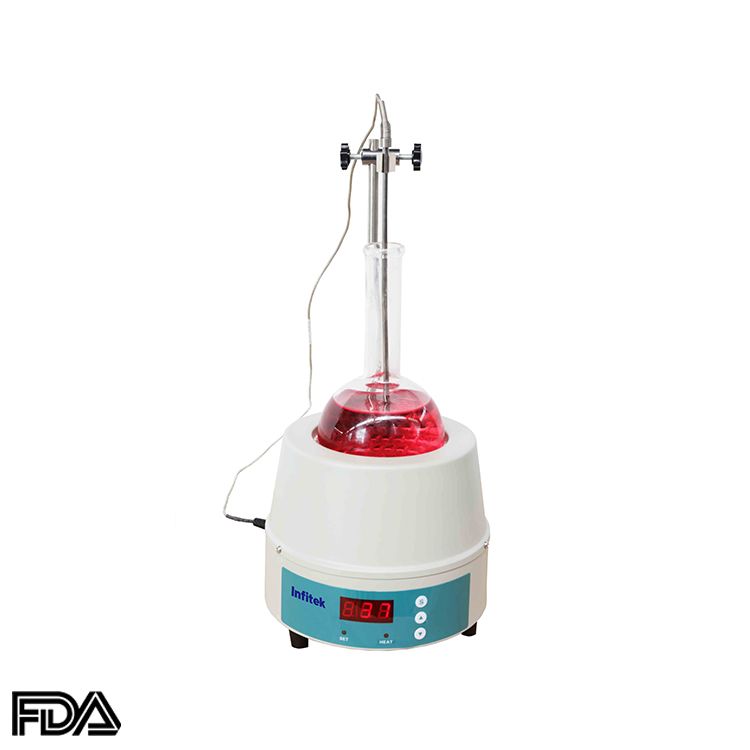

Digital Display Heating Mantle, HMD Series

Description

PID Single Screen Temperature controller. Fast heating, temperature uniformity and high precise temperature control.
Several Rows type, produce as Customer inquiry, beautiful shape, easy to operate and effective.
PT100 Temperature sensor, with Adjustable Sensor Rack and Stainless Rods.

Model		HMD-1	HMD-2	HMD-5	HMD-10	HMD-20	HMD-40	HMD-60	HMD-100	HMD-200	HMD-400
Function	Capacity(ml)	50	100	250	500	1000	2000	3000	5000	10000	20000
	Heating Mode	Surface heat-conduction
	Surface Max.Temp.( ℃)	450℃
	Temperature control range	RT+20～250℃
Structure	Heating element	Nichrome wire
	Shell(Insulation Layer)	High quality aluminum silicate cotton
	Heating power (kW)	0.08	0.1	0.15	0.25	0.35	0.45	0.6	0.8	1.2	2.5
Controller	Working Mode	Continuous
Specification	Exterior size (mm)	￠220×165				￠280×220	￠330×230	￠340×245	￠350×250	￠425×320	￠470×340
	Packing size (mm)	230×230×195				290×290×300	340×340×350	360×360×300	390×390×310	430×430×350	510×510×380
	Voltage(V)	100～120V or 200～240V						200～240V
	N.W. (Kg)	2.5				5.5	6.5	7.5	8	9.8	16
	G.W. (Kg)	2.8				6	7	8	9.2	12	20
