- Measuring Range (mPa·s) :40～141 KU/32～1,099gm/27～5,274cP
- Rotating Speed (RPM): 200
- Number of spindle: Special spindle
- Accuracy: ±1% full scale range in use
- Repeatability: ±0.5% full scale range in use

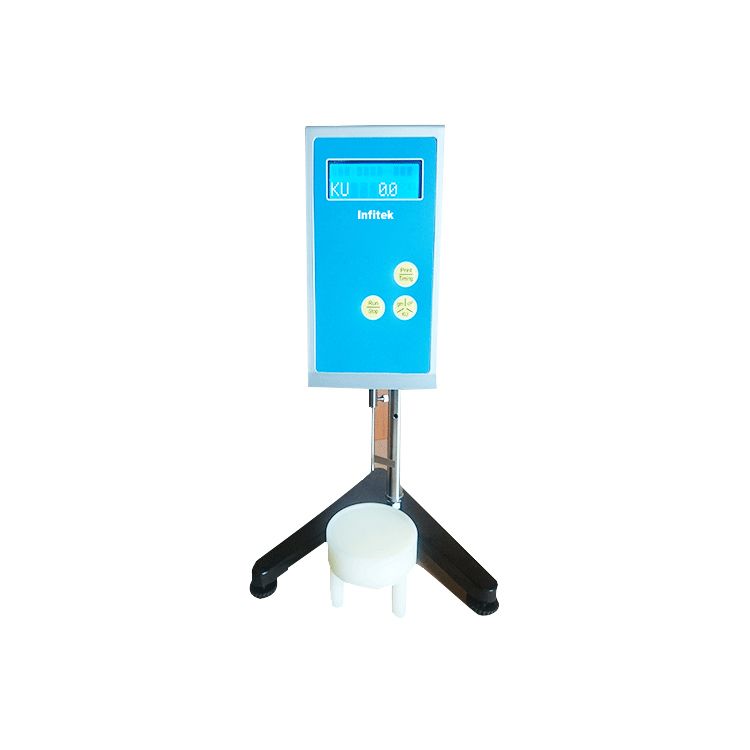

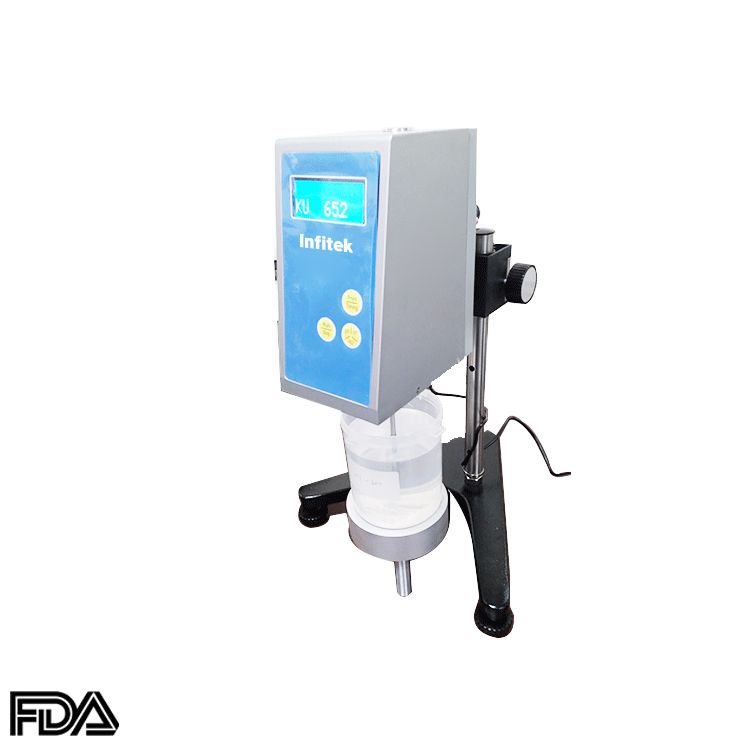

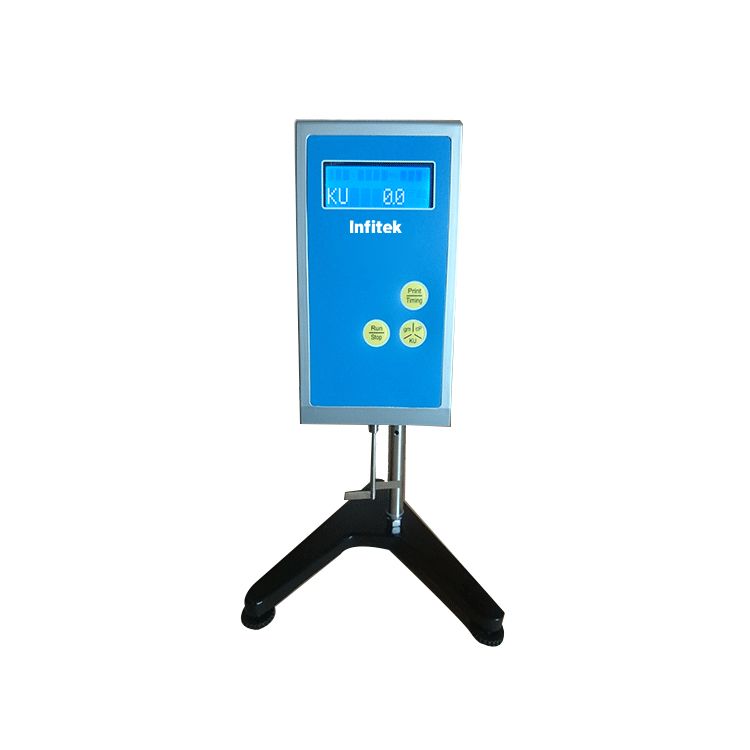

Digital Viscometer, VSC-KU
Description
VSC-KU stormer viscometer is a test instrument dedicated to measuring fluid viscosity with the unit of Krebs (KU value), such as the paint, coating etc. Through the function key, circulating in the blue backlight LCD screen display Krebs unit (KU), gram unit (gm) and the CPS (cP) as the unit of viscosity.
The instrument adopts core control circuit with 16 bit microprocessor，the spindle speed is 200RPM, The measured resistance moment in fluid has been converted to KU value and directly displayed on the screen, We can convert KU, gm, and cP according to the ASTM D562 industrial standard.
 |

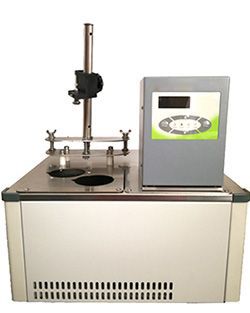

Optional matching Thermostatic baths
A-LC1008 Refrigerant, environmentally friendly R134a A-RC0508 Packing weight: 20.5kg |
Specifications
| Measuring Range | 40～141 KU |
| 32～1,099 gm | |
| 27～5,274 cP * | |
| Number of Spindles | Special spindle |
| Accuracy | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use |
| Rotating Speed | 200 RPM |
| Power | Power adapter (input: 100-240V，50/60Hz) |
| Size(mm) | 400*350*360 |
| Weight(kg) | 8kg |
* cP value is for reference only, not for checking.
Apparatus to be equipped
| digital viscosity meter | 1 pce |
| ascending and falling rack | 1 set |
| power adapter | 1 pce |
| spanner | 1 pce |
| seat and leveling feet | 1 set |
| special spindle | 1 pce |
| viscometer operation manual | 1 set |
Spare optional
Specially used printer
RTD temperature probe (Temp range: 0℃~100℃, ±0.1℃)
