- Support for USB communication
- Data analysis feature
- IP65 waterproof
- Auto barometric pressure compensation

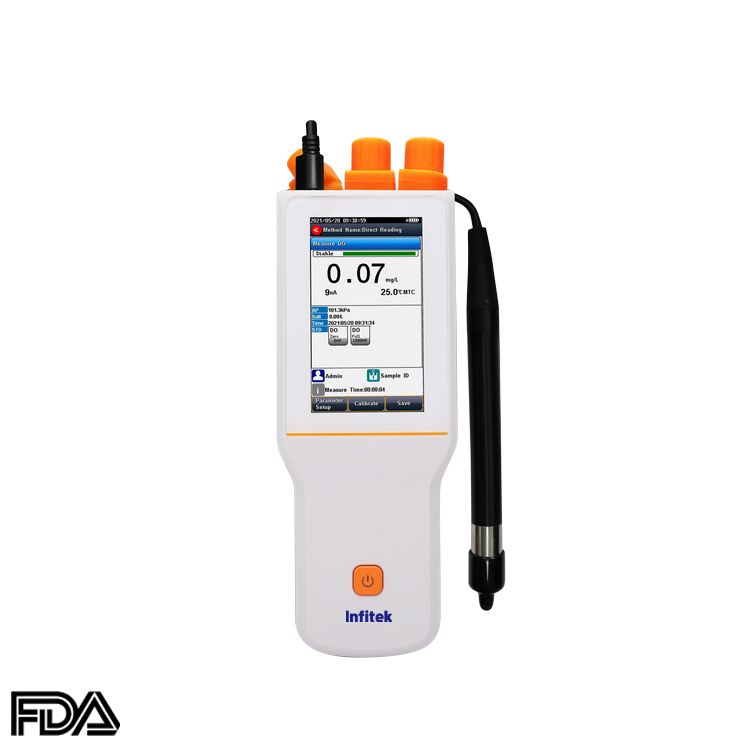

Dissolved Oxygen Meter, Portable, DO-P511T
Description
The dissolved oxygen meter has automatic temperature compensation function, as well as air pressure and salinity compensation functions, which are suitable for various fields.
Advantages
- 3-inchcolor high contrast LCD touch screen.
- Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Managementand etc.
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data Storage1000 sets for each parameter (GLP-compliant).
- Data analysis feature helps user review, compare and recalculate results.
- Support for USB communication.
- Auto-power off feature effectively extends the battery service life.
- Reset feature automatically resumes all settings back to factory default options.
- IP65 waterproof.
- Support for air-saturated water or zero oxygen calibration.
- Auto barometric pressure compensation
- Manual salinity factor correction
- Selectable pressure unit, including kPa, mbar, Torr, Atm.
Specifications
| Model | DO-P511T | |
| Parameters | DO/Temp(DO Saturation) | |
| Dissolved Oxygen Concentration | Sensor Type | Optical |
| Range | 0.00 to 20.00 ppm | |
| Resolution | 0.01 ppm | |
|
Accuracy |
±0.3 ppm | |
| Calibration Points | Air-saturated water or zero point | |
| Barometric Compensation | Yes | |
| Manual Salinity Factor Correction | Yes | |
| DO Saturation | Range | (0.0 to 200.0)% |
| Resolution | 0.10% | |
|
Accuracy |
±10.0% | |
| Temperature | Range | 0 to 50 ºC |
| Unit | ºC | |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.2 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes | |
| Inputs | DO with Temp. Probe | 4-pin aviation connector |
| Outputs | USB | USB 2.0 flash memory device, PC, scanner |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
| IP Rating | IP65 | |
| Date and Time | Yes | |
| General | Electricity | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 96×201×55 mm | |
| Weight | 300g | |
