- Main body groove (main body): one
- Concave glass plate: 2 blocks
- Flat glass plate: 2 blocks

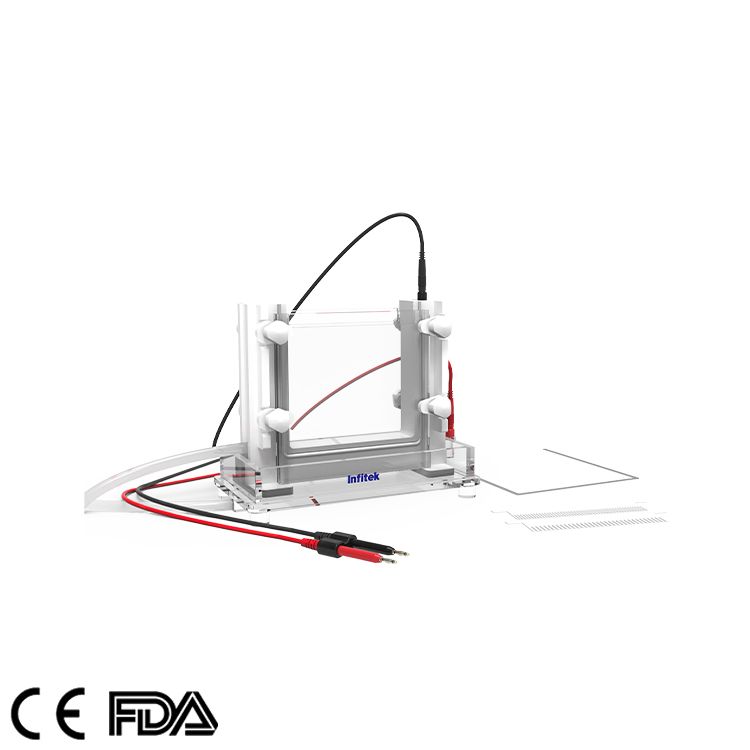

Vertical Electrophoresis Cell, GEP-VH-SCZ02
Description
Uses: This product is suitable for protein separation and identification and SSR molecular.
Features
Thickened gel glass plate, durable.
Integrated design of concave plate and edge strip.
Special sealing mold to ensure no glue leakage.
Buffer outlets of the upper and lower tanks are convenient for removing residual liquid.
99.99% high purity platinum electrode has the best conductivity and corrosion resistance.
Specifications
| Overall dimensions (l× w× d) | 220 * 130 * 190 |
| Gel area (w× l) | 150mm * 150mm |
| Glass area | 180mm*180mm |
| Sampling comb | 20, 34, 50 (optional gun sampling) |
| Gel thickness | 1mm |
| Total buffer capacity | about 600ml. |
| name | specifications | quantity |
| Main body groove (main body) | one | |
| Concave glass plate | two | |
| Flat glass plate | two | |
| Sealing frame | two | |
| Sample comb | 20 teeth | two |
| 34 teeth | two | |
| Upper and lower trough drain pipe | two | |
| wireway | one |
