- Microplate types: 96/48 -well plate
- Wavelength range: 400nm~800nm
- Single or dual wavelength measurements
- Standard filters: 405,450,492,630nm & 4 optional

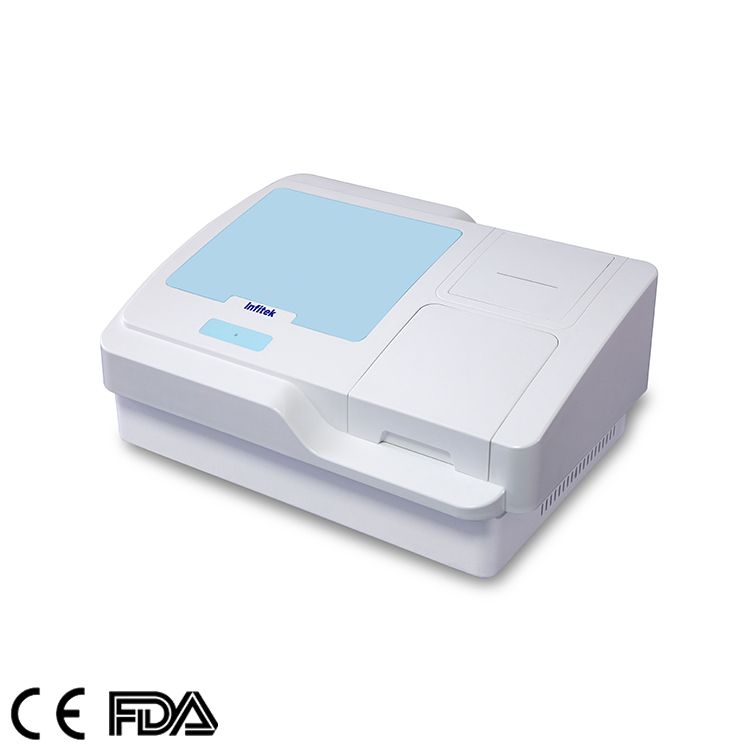

Elisa Reader, MPR-H200BN
Description
- Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
- Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
- Perfoming 12 different tests in just one plate
- Multi-forms in result output including patient comprehensive report
- With USB interface, easily connect to PC , comprehensive functions with Found Workstation PC software
Specifications
| Microplate types | 96/48 -well plate |
| Photodetector | Silicon Photodiode |
| Light source | 8v/50w Controlled tungsten halogen lamp |
| Wavelength range | 400nm~800nm |
| Standard filters | 405,450,492,630nm & 4 optional |
| Reading range | 0.000~4.000A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading Speed | Single Wavelength≤3s ;Double Wavelength≤6s |
| Shaking | Linear Shaking , 3 speeds |
| Input | DIATEK ELISA Reader software |
| Interface | USB |
| Power supply | 100~240V, 50~60Hz |
| Dimensions | 460(L)×350(W)×197(H)mm |
| Net weight | 7kg |
