- Welded by stainless steel plate
- Collection port:8, 10, 15, 20
- Extraction opening: 1, 2

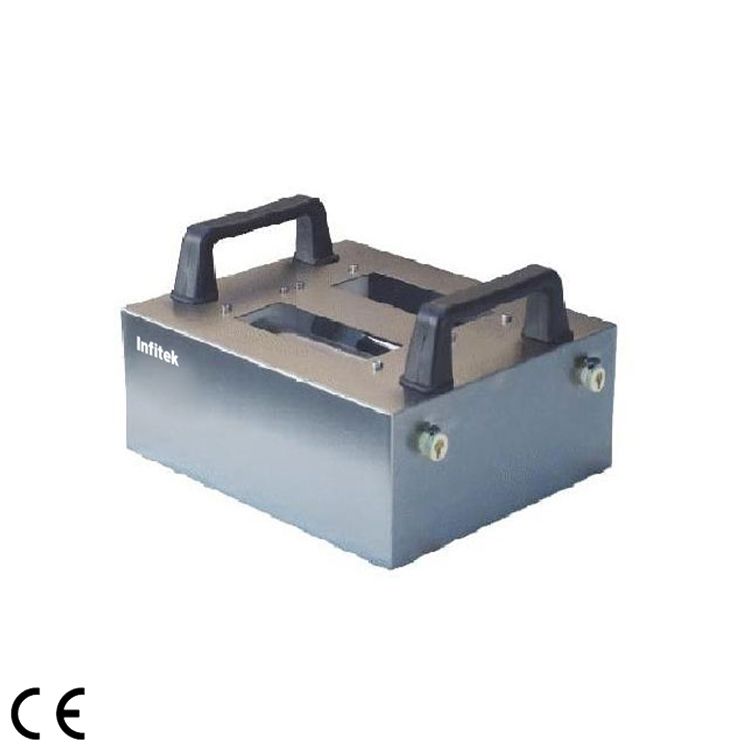

Exhaust Gas Collection Hood, KJD-WGH Series
Description
The exhaust gas collection device is specially designed for digestors. It collects acid gas (acid mist) generated during sample digestion. The exhasut gas collection device should be connected to a suitable scrubber unit. After being neutralised, the gas (acid mist) can reach the discharge standard.
Features
1.The sealing cover is made of fluorinerubber, resistant to high temperature and strong acid.
2.The alkali pipe is made by American CPC company, resistant to strong acid and has a long service life.
3.The collection tube with high reliability, is deep in the tube to collect acid gas.
4.The stainless steel shell has certain corrosion resistance.
Specifications
| Model | KJD-WGH-8 | KJD-WGH-10 | KJD-WGH-15 | KJD-WGH-20 |
| Collection port | 8 | 10 | 15 | 20 |
| Extraction opening | 1 | 1 | 2 | 2 |
| Dimension | 300*240*170mm | 300*240*170mm | 300*150*160mm | 250*150*160mm |
