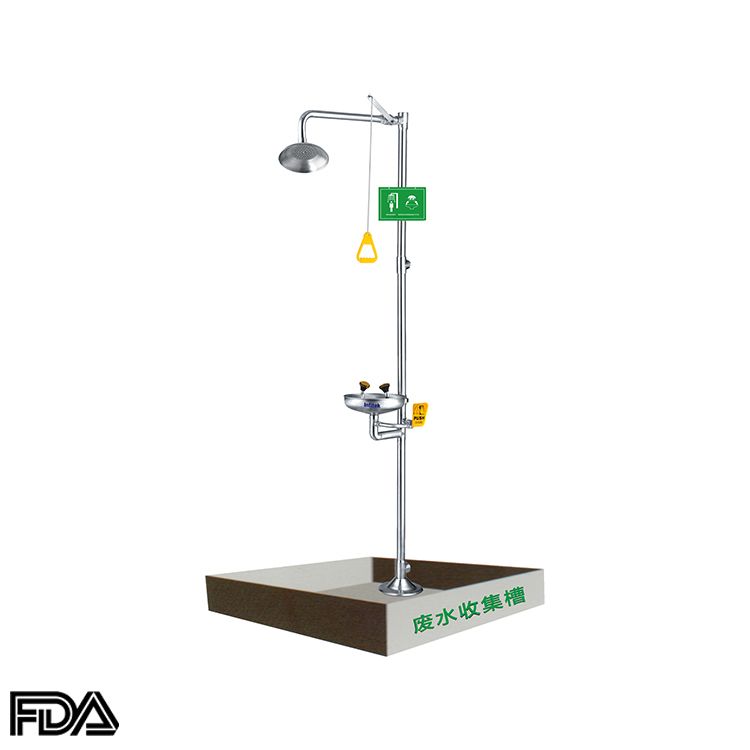

Eye face wash and shower combination station, EEWS-307

Description

The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end
The shower, as well as the waste-water collecting sink are customizable
Optional anti-scalding valve: The anti-scalding function of the eyewash can be customized. This anti-scalding valve is the main accessory, and a small part of the structure of the eyewash needs to be changed.

Working principle of anti-scalding valve

A thermal element is installed at the mixing outlet of the constant temperature water mixing valve, which uses the characteristics of the temperature sensing element to promote the movement of the valve core in the valve body and block or open the water inlets of cold and hot water. Turn on the hot water while blocking the cold water. When the temperature adjustment knob sets a certain temperature, no matter how the inlet temperature and pressure of cold and hot water change, the proportion of cold and hot water entering the outlet also changes, so that the outlet temperature remains constant. The temperature adjustment knob can be set arbitrarily within the specified temperature range of the product, and the water mixing valve will automatically maintain the outlet temperature.

Note: After setting the temperature, turn it on when the temperature is low and turn off when the temperature is high to avoid burns.

Specifications

Material	Stainless Steel 304 / PP
Product features	equips with waste-water collecting sink
Surface finishing	fine-polished, which makes the pipe surface performs better on corrosion resistance
Usage	drenching body and rinsing faces / eyes can be operated separately or simultaneously
Shower & eye wash switch	SS304 ball valve
Shower head	spinning-formed with curled rim, diameter 250 mm
Pipe diameter	38 mm
Nominal pressure	1.0 Mpa
Working pressure	0.2~0.4 Mpa
Testing pressure	1.5 Mpa
Temperature requirement on working environment	0°C~40°C
Flow rate of body shower	≥76 L/min
Flow rate of eye/face wash	≥11.4 L/min
Flow rate of eye wash	≥1.5 L/min
Eyewash bowl features	300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
Dust cover feature	integrated with the spray head ( not connected by chain )
Spray head feature	patented design, each spray head equips with one water-flow control valve
Inlet thread	Rp1″,female
Outlet thread	Rp1″ ,female
Inlet height ( from above the floor )	1186 mm
Outlet height ( from above the floor )	86mm
Distance between spray heads	170 mm
Size of waste-water collecting sink	1000 mm ( length ) X 1000 mm ( width ) X 150 mm ( depth )
