- Pre-setting temperature range: ambient~-55℃
- Maximum temperature range for Cryo-plate ≥60℃
- Maximum temperature range for Cryo-probe: ≥50℃
- Maximum size of Cryo-plate: 45 x 40mm

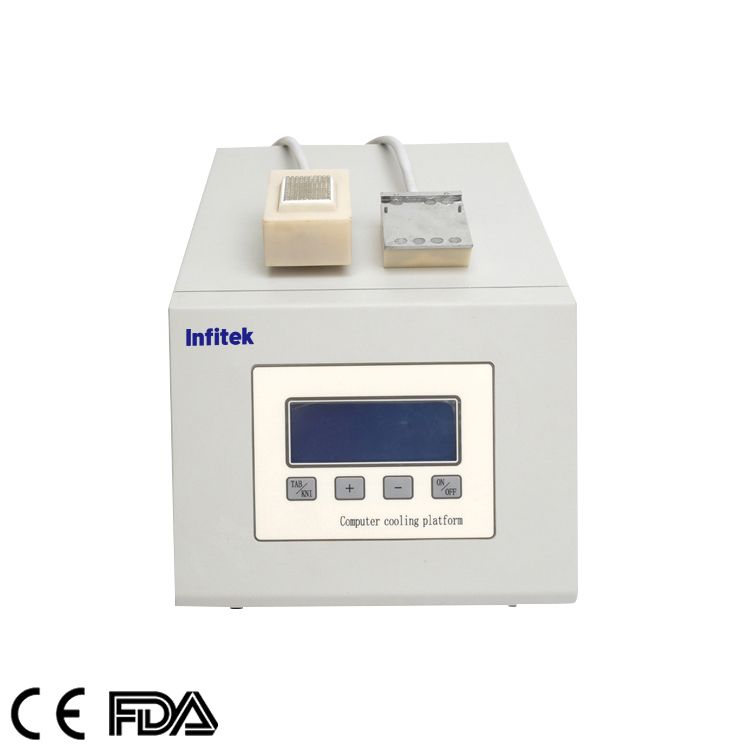

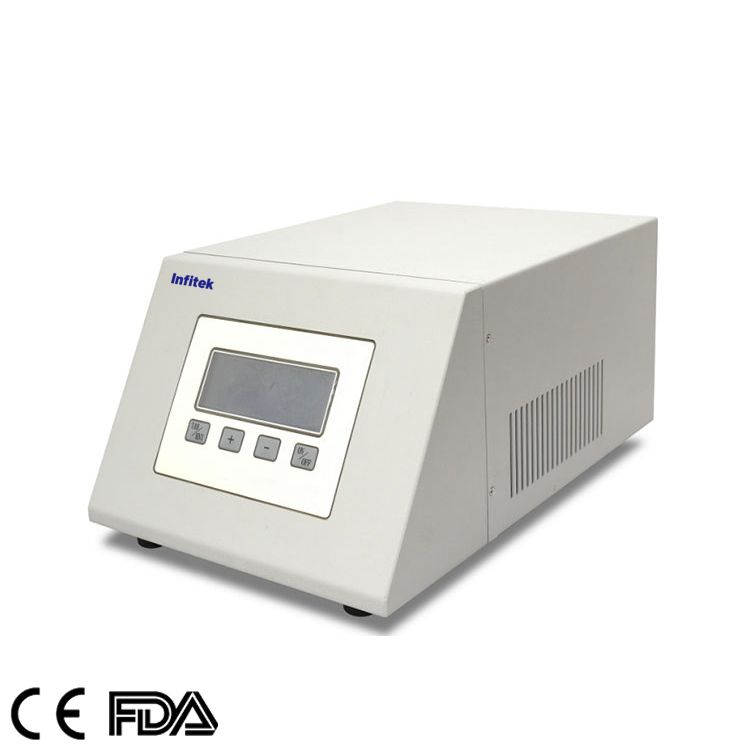

Fast Freezing Machine, TSF-FF
Description
- Import wide screen, clear handwriting, any angle can clearly observe the display data.
- The interface distribution is reasonable, the working state is displayed in real time, and the set temperature and measured temperature are clear at a glance.
- Computer automatic program control, automatic constant temperature control, automatic protection system (alarm), automatic frost, automatic memory.
- The refrigeration system adopts high-power semiconductor temperature difference refrigeration principle and advanced nano materials, with high refrigeration efficiency.
- Two high-power switching power supplies are used to supply power for the cold knife and cold table modules independently, with independent control and more stable performance.
- The temperature of cold knife and cold table can be preset independently, and the working temperature can be displayed in real time with automatic constant temperature.
- It has the function of memory and automatic recovery, and automatically retains the preset temperature after operation.
- With wrong connection prompt, automatic protection system (alarm) function.
- Ultra fast refrigeration speed, breaking the conventional refrigeration mode, cooling time 1 ~ 7 minutes can reach the chip working temperature.
- With automatic defrosting function, defrosting temperature can be displayed in real time, and the refrigeration state can be automatically restored after defrosting (Note: defrosting onceevery hour, defrosting time can be reduced by 10 seconds when the temperature rises by 1 degree).
- It can be combined with any paraffin section machine of our company to realize dual-use of one machine, which can be used for frozen section or paraffin section.
Specifications
- Pre-setting temperature range: ambient~-55℃
- Maximum temperature range for Cryo-plate ≥60℃
- Maximum temperature range for Cryo-probe: ≥50℃
- Maximum size of Cryo-plate: 45 x 40mm
- Pre-setting and real temperature shown in LCD
- Best section angle between Cryo-knife and section blade is 60 degrees
- Temperature of defrost display, pre-setting temperature can be stored itself after working
- Temperature of section can be reached after freezing within 4~7 minutes
- Quick freezing systems, energy-saving
- Dual function section: Freezing and paraffin use
- Working Voltage: AC220V±10%50Hz (standard model); AC110V±10% 60Hz
- Total Power: 25W
- Dimensions: 450×300×320mm (W×D×H)
- Net Weight: 10kg
