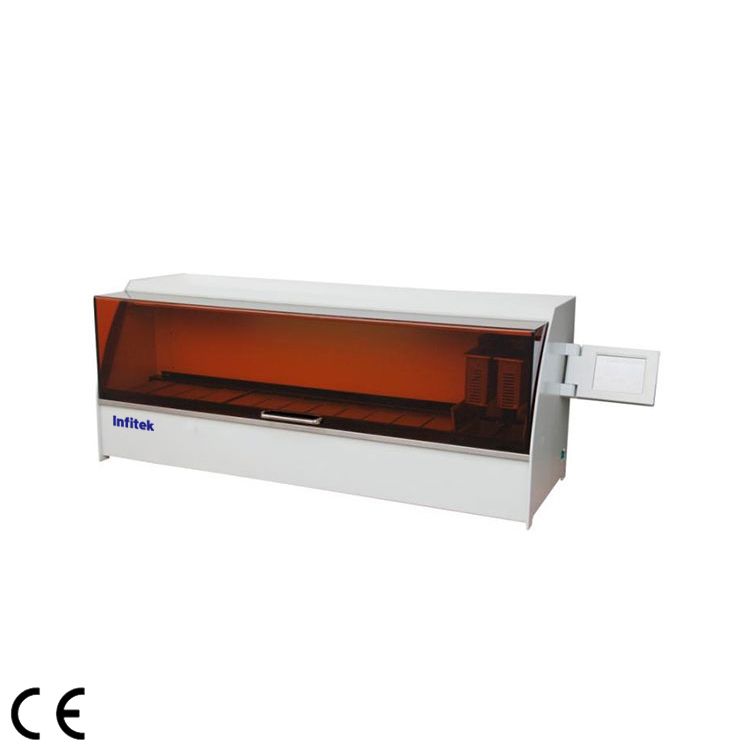

Fully Automated Tissue Processor, TSP-3D

Description

Flexible transmission system, low noise, wear-resistant
Two sets of operation mechanisms doubles the processing capacity. Tissue specimens can be separately placed into different baskets according to size, texture, and origin, thus improving processing performancem. Optional single-mechanism mode for processing a smaller number of tissue specimens to ease the operation
20 editable programs for each of A and B can be stored in the system
Integrated high-quality LCD screen with intuitive bilingual (Chinese/English) software
Fully intelligent design, enabling timely determination and automatic recovery from an abnormal event
Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
Green inner-cycling air purification system to highly efficiently adsorb and remove poisonous gas; well-sealed gas-effluxion mechanism to effectively improve the operational environment
This system can be automatically started at any time as programmed (Setting Range 0-99 hours and 0-59 minutes)
Automated fan and light control
Internal dry heating mechanism and triple protection channels offer high-precision automatic gradient temperature control. Automatically determines the time of heating.
Low-energy-consuming control circuit with power protection function. Battery backup with more than 30 hours of running power
Power Protection Station: Station 7 for A basket and Station 5 for B basket, ensuring continued operation during a power outage.
Manual operation can be conducted anytime during the programmed automatic operation, allowing user to check or add tissue specimens during the operation
200 or more specimens can be processed at the same time

Specifications

Number of Cups	14(10 for reagents, and the cups at the 11th, 12th, 13th, and 14thstations are used for paraffin melting);
Number of baskets	2
Capacity of Each Cup	1500ml
Temperature range	RT – 800C
Temperature Control Precision	±10C
Length of Processing Time in the Cup	Any length between 0 and 99 hours for the 1st and 2nd cup, Any length between 0 and 24 hours for the 3nd to 14th cup
Dripping Time	Adjustable within 10s – 60s,shake/drip above cup
Frequency of Agitation	Adjustable within 0 – 6 times/minute
Working Voltage	AC220V±10%50HZ (standard model); AC110V±10% 60HZ
Power Requirements	550W
Dimensions	1250×440×495 mm (W×D×H)
Weight	92kg
