- Test Speed:UA-S3-120:120 samples/hour;UA-A3-240:240 strips/hour
- Automatic urine dry chemical detection and microscopic examination
- Automatic focus calibration without focus fluid

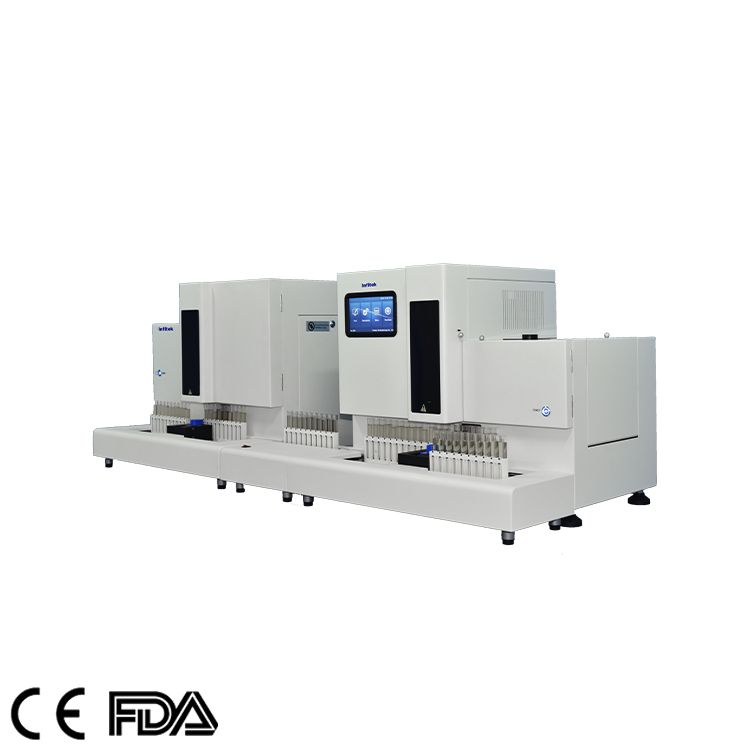

Fully Automatic Urine Analysis Workstation, UA-S3-120&UA-A3-240
Description
Description
UA-S3-20&UA-A3-240 Fully Automatic Urine Analysis Workstation combines the urine chemistry analysis and the urine formed element detection together in one workstation. It makes the urine test efficient, fast and contamination-free.
Features
- Automatic urine dry chemical detection and microscopic examination will be finished in one time, which is efficient, fast and pollution-free.
- Comprehensive report of dry chemical analysis results, urine formed elements test results, scientific indicators, illustrated, provides full diagnostics means for clinical;
- Automatic focus calibration without focus fluid, which reduces maintenance costs.
Specifications
| Model | UA-S3-120 |
| Test Parameters | Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell,Sperm, Calcium Crystal, Oxalate Crystal Bacteria,Yeast, Amorphous Urates, Mucus etc. |
| Test Principle | Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique |
| Channel | Four channels fixed flow counting cell |
| Sample Volume | Minimum volume:3mL,Aspiration volume:1mL |
| Test Speed | 120 samples/hour |
| Aspiration Volume | 1ml |
| Test Sensitivity | 5 cells/μL |
| Accuracy | >95% |
| Repeatability | CV<10% |
| Cross Contamination Rate | <0.05% |
| Data Storage | 200,000 |
| Report Mode | International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results |
| Environment | Temperature:15°C~35°C
Optimum temperature: 20°C~25°C Relative humidity:≤75% |
| Electricity | AC220V±10% , 50Hz |
| Dimensions(L*W*H) | 660mm*440mm*570mm |
| N.W./G.W. | 37kg/95kg |
| Shipping Dimension(L*W*H) | 1150*760*770mm |
| Model | UA-A3-240 |
| Test Speed | 240 strips/hour(15 seconds/strip) |
| On Board Sample Capacity | 5 racks of 10 tubes (50 samples) |
| Sample Volume | Minimum volume: 3mL;Aspiration volume:1mL |
| Test Principle | Photoelectric colorimetric method |
| Test Parameters | Urobilinogen(URO), Bilirubin(BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocytes(LEU), Glucose(GLU), Specific Gravity(SG), PH(pH), Ascorbic Acid(VC), Microalbumin(MAL), Creatinine(CRE), Calcium(CAL) |
| Data Storage Capacity | 20,000 |
| External Output | RS-232 |
| Electricity | AC 220V, 50Hz |
| Power | 300VA |
| Fuse | 250V 2A |
| Environment | Temperature:15° C ~ 35° C
Optimum temperature: 20° C~25° C Relative humidity:≤75% |
| Printer | Thermal printer |
| Dimensions(L*W*H) | 660*625*581mm |
| Net Weight | 65kg |
