- Measuring Angle: 60°
- Measuring Range: 0~200GU
- Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Display 3 sets of measurement data
- Built-in lithium-ion rechargeable battery
- Comply with international standards

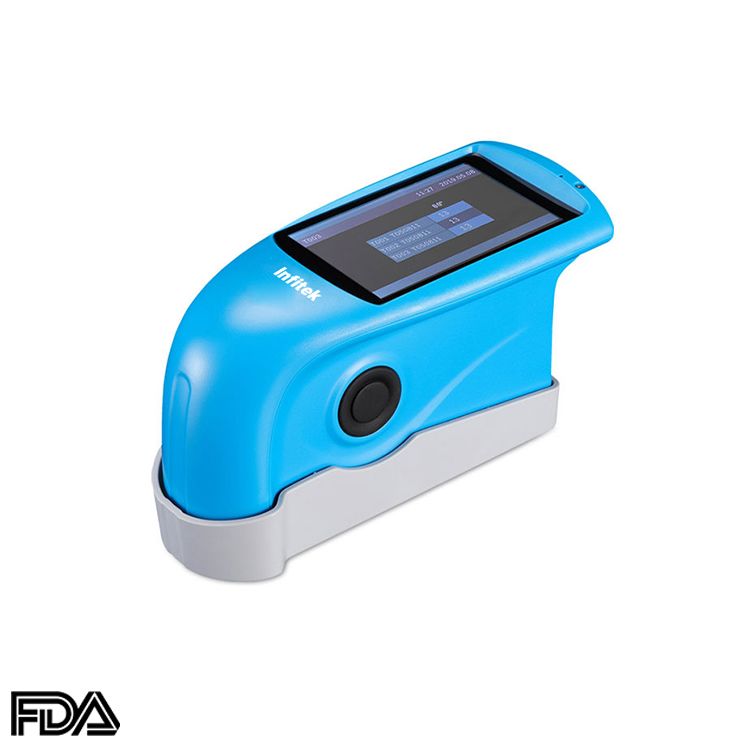

Gloss Meter, Economic Type, GLOM-60SE
Description
DESCRIPTION
DESCRIPTION
1. 60° angle for semi gloss
2. Concise appearance, feel good
3. Display 3 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. One button for all angles measurement at the same location
7. Comply with international standards
8. Stable performance, easy to read data.
SPECIFICATIONS
SPECIFICATIONS
| GLOM-60SE Economic Gloss Meter | |
| Model: | GLOM-60SE |
| Measuring Angle | 60° |
| Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | |
| Measuring Area (mm) | 9×15 |
| Measuring Range | 0~200GU |
| Division Value | 1GU |
| Measurement Range | 0-200GU ±1GU ± 1GU |
| Repeatability | |
| Reproducibility | |
| Measurement Standard | Confirm with JJG696 second class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours) |
| Display | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 |
| Software | / |
| Operation Temperature | 0~40℃（32~104°F） |
| Storage Temperature | -20~50℃（-4~122°F） |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |

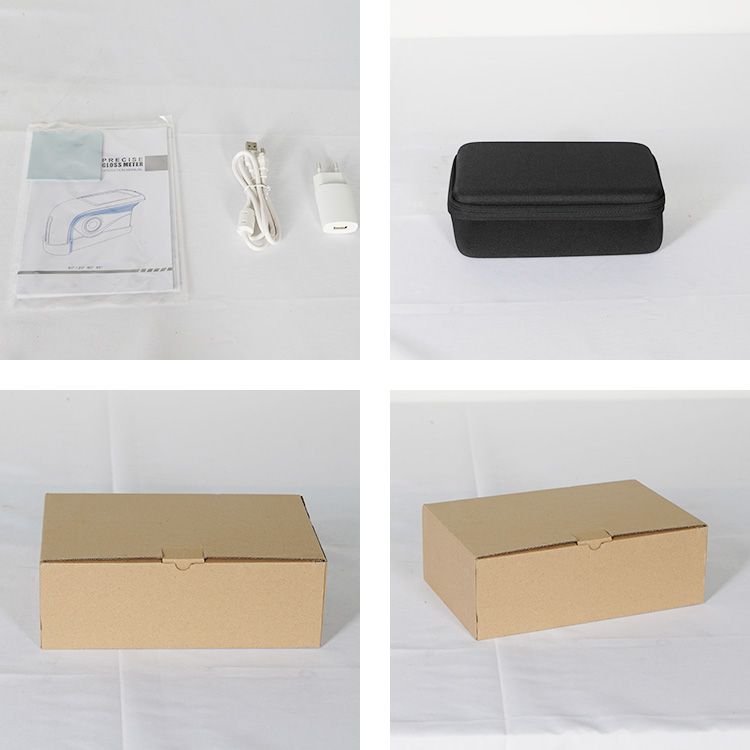

Accessories & Package
Accessories & Package
