- Temp. range: 50℃- 500℃
- Top-mounted air outlet
- LED digital tube display
- Pull-out movable shelf

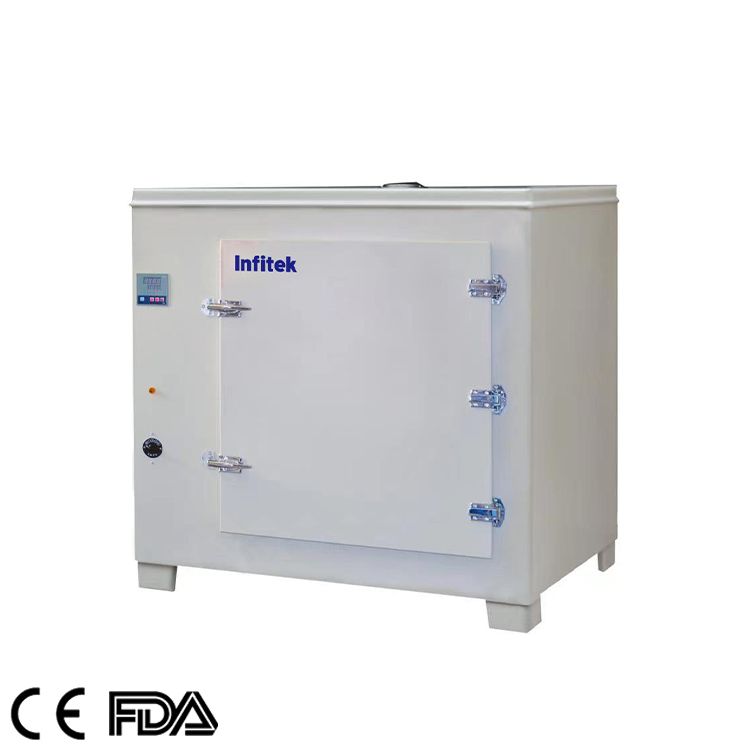

High Temperature Oven, DON-H130, H220, H640
Description
This product is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units. This drying oven is suitable for heating, drying or heat treatment below 500 °C, and is not suitable for baking volatile items and flammable and explosive items.
Features
- Outer box material: cold-rolled steel surface sprayed with plastic; inner material: SUS stainless steel plate.
- Top-mounted air outlet, easy to switch.
- The resistance wire at the bottom can be heated, and there is a temperature switch. Suitable heating power can be selected according to different temperatures.
- LED digital tube display P.I.D temperature controller, precise temperature control.
- Continuous operation or timed operation: 0 ~ 9999min; with parameter memory function, it will automatically resume operation after incoming calls.
- Pull-out movable shelf
Specifications
| Model | DON-H130 | DON-H220 | DON-H640 |
| Temp. range | 50℃- 500℃ | ||
| Temp.uniformity | ≤Max. working temperature ±3.5% | ||
| Temp.fluctuation | ±1℃ | ||
| Circulation in the chamber | Natural convection | ||
| Alarm type | Over temperature alarm, temperature probe damage alarm | ||
| Internal dimensions W*D*H(mm) | 552*450*553 | 602*500*753 | 803*803*1003 |
| Internal volume (L) | 137 | 226 | 646 |
| External dimensions W*D*H(mm) | 1020*720*922 | 1070*770*1122 | 1270*1070*1372 |
| Packing dimensions W*D*H(mm) | 1170*840*1080 | 1220*890*1280 | 1470*1190*1530 |
| Shelf | 2 | 3 | 3 |
| Power (W) | 6000 | 8000 | 12000 |
| Electricity | 3Ø 380V 50Hz | ||
| Remarks | External depth (D) includes 3.5cm accessories, height (H) includes 1.2cm accessories | ||
