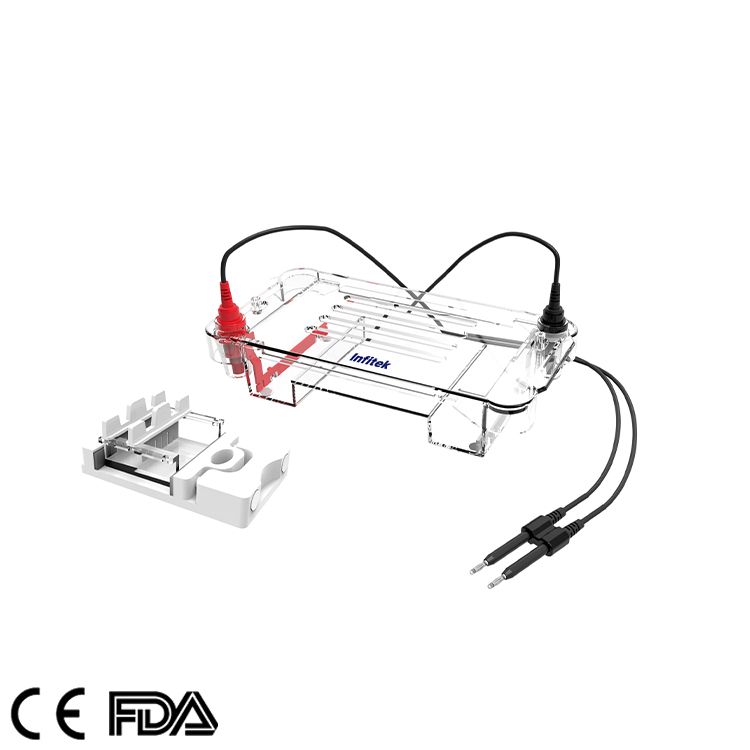

Horizontal Electrophoresis Cell, GEP-HH-SUB01

  1. Main body groove (upper cover): one
  2. Main tank (lower tank): one
  3. Glue maker: one

Share the product

Description

Usage: This product is suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight.

Features

Polycarbonate injection molding at one time, no leakage.
The design of cooling holes on the upper cover can effectively avoid condensation of water vapor.
Special telescopic elastic glue maker ensures cleanliness and no glue leakage.
Limit function, will not make the positive and negative electrodes installed backwards.
High-flexibility wire, open cover and power-off design to ensure safety;
The electrode can be replaced for easy maintenance;
99.99% high purity platinum electrode has the best conductivity and corrosion resistance.

Specifications

Basic parameters
Overall dimensions (l× w× d)  180 * 90 * 70
Gel area (l× w)  75mm * 60mm
Sample comb 1.0/1.5mm, 6/11 teeth
Total buffer capacity  about 300ml



name specifications quantity
Main body groove (upper cover) one
Main tank (lower tank) one
electrode positive pole one
negative pole one
Glue maker one
tray one
Sample comb 1mm 6 teeth 2
1mm 11 teeth 2
1.5mm 6 teeth 2
1.5mm 11 teeth 2
wireway . 1
