- Max. Volume(ML): 5000
- Speed(r.p.m): 200～2000
- Working time: Continuous
- Minimum revolution( R.P.M.): 200
- Max. temp（℃）: 380; 350

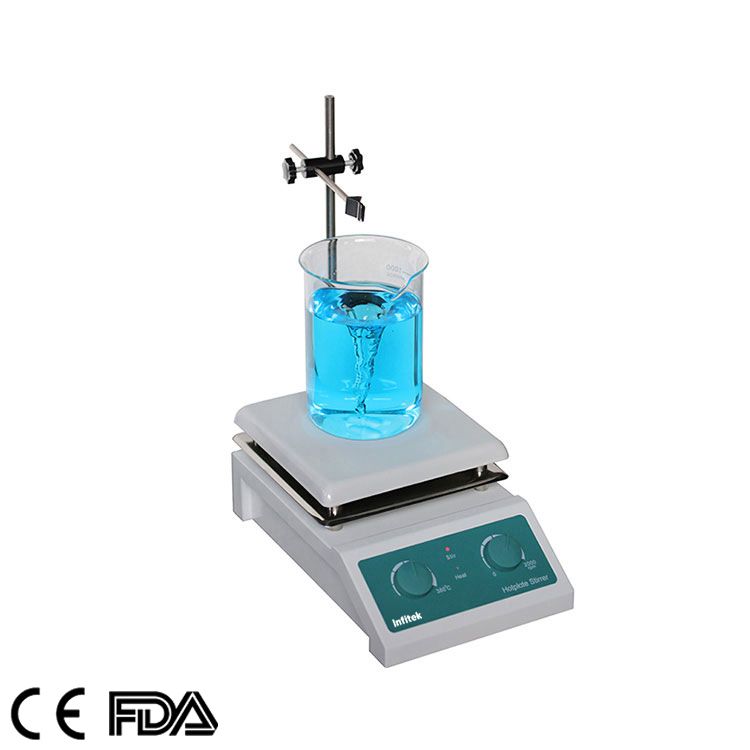

Hotplate Magnetic Stirrer, 380 degree, Ceramic Type, HPT/MGS/HPS Series
Description
New digital model, Ceramic Magnetic Stirrer with the following function:
HPS-350-4
1.Setting temperature precisely.And stirring speed stepless adjustable.
2.Large LCD display,temperature and rotate speed can be displayed simultaneously.
3.Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
4.K mode sensor to control hot plate temperature.
HPS-350-4S
1.Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.
2.With speed switch to start or stop stirring at any time.
3.Timing function (0-9999min), time adjustable under artficial requirement. Audible and visual alam equipped.
4.Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
5.One key to shift inside and outside sensoreasily and precisely.
6.Large screen LCD display can indicate temperature, rotational speed and timing at the same time.
Specifications
| Model | HPT-380-4A | MGS-4 | HPS-380-4 | HPS-350-4 | HPS-350-4S | |
| Function | Max. Volume (ML) |
5000 | 5000 | 5000 | 5000 | 5000 |
| Speed (r.p.m) |
– | 200~2000 | ||||
| Working time | Continuous | |||||
| Minimum revolution ( R.P.M.) |
– | 200 | 200 | 200 | 200 | |
| Max. temp (ºC) |
380 | – | 380 | 350 | 350 | |
| Structure | Exterior | Iron plate welding, surface spraying | ||||
| Heating plate | Ceramic Coated | |||||
| Driving mode | – | Motor | ||||
| Motor power (W) |
– | 20 | 20 | 20 | 20 | |
| Heating power (kW) |
0.6 | – | 0.6 | 0.6 | 0.6 | |
| Stir bar | no | PTFE | ||||
| Controller | Continuous operation |
yes | ||||
| Setting mode | Scale | Digital | ||||
| Speed display mode |
Scale | Digital | Digital | |||
| Timer | no | yes | ||||
| Operation function | no | yes | ||||
| Sensor | no | PT100 | PT100 | |||
| Specification | Exterior size (W*L*H) (mm) |
320×190×125 | ||||
| Packing size (W*L*H) (mm) |
390×240×230 | 390×240×230 | 400×240×220 | 390×240×230 | 390×240×230 | |
| Plate size(mm) | 190×190 | |||||
| Plate load | 10KG | |||||
| Power supply | 110V or 220V | |||||
| (50/60Hz) | ||||||
| Current rating | ||||||
| NW/GW (kg) | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 | |
