- Max. stirring quantity, [H2O]: 20L; 10L
- Max. magnetic bar[length]: 80mm
- Speed range: 100-1500rpm
- Heating temperature range: Room Temp.-550°C, increment 1°C; Room temp.-550°C, increment 5°C
Hotplate Magnetic Stirrer, 500 Degree, HPS-550 Series
Description
DESCRIPTION
DESCRIPTION

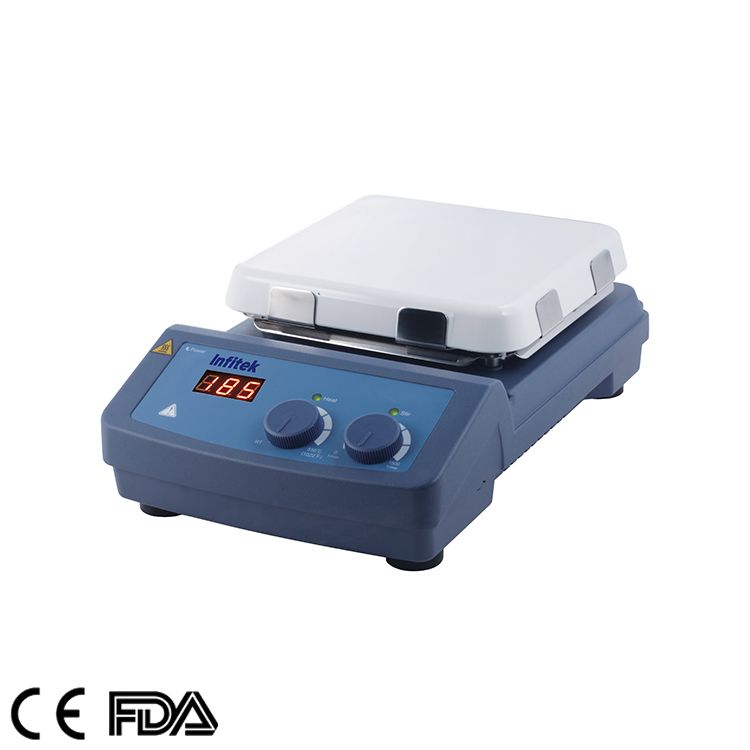

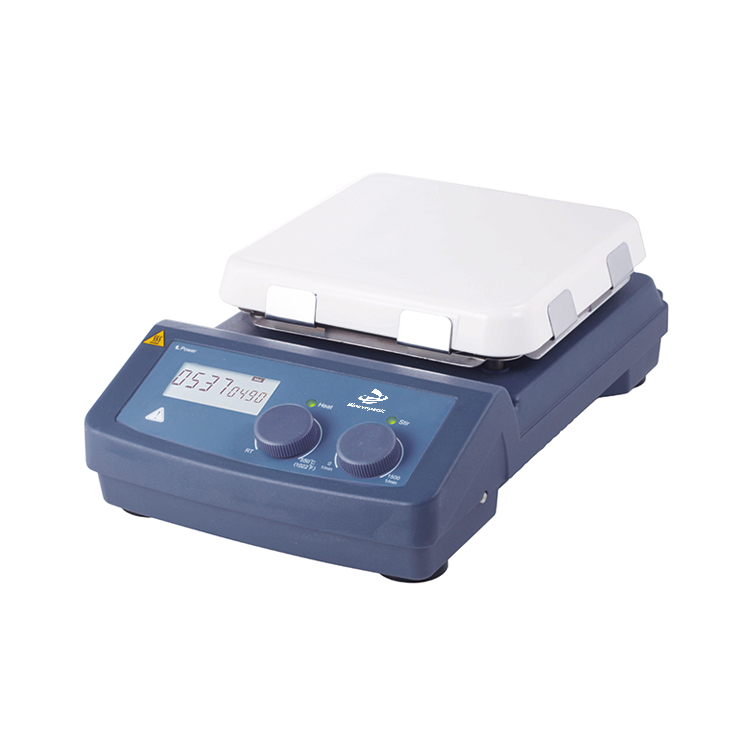

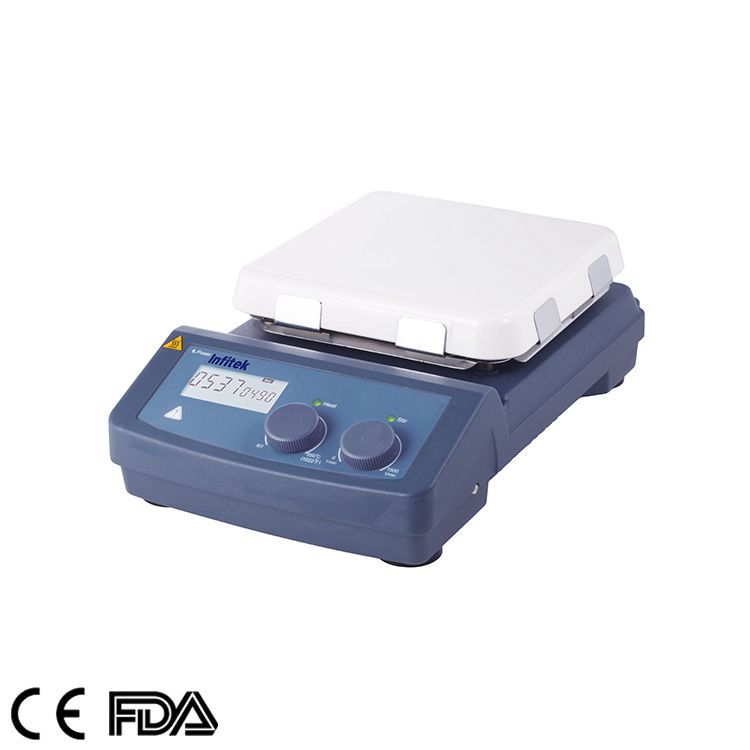

HPS-550 LCD Digital HPS-550P LED Digital
For HPS-550
•Built-in PID controller ensures safe heating of the medium with overheating protection.
•Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.
•Outstanding brushless DC motor enables more stirring power.
•Two rotating knobs enable easy adjustment of speed and temperature.
Remote function provides PC control and data transmission.
For HPS-550,HPS-550P
•LCD display for precise monitoring of speed and temperature.
•Digital speed controlling, max. speed at 1500rpm.
•Max. heating plate temperature 550°C.
•External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C.
•The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | HPS-550P | HPS-550 |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | 184x184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 |
| Max. stirring quantity, [H2O] | 20L | 10L |
| Max. magnetic bar[length] | 80mm | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm | 0-1500rpm |
| Speed display | LCD | Scale |
| Temperature display | LCD | LED |
| Heating temperature range | Room Temp.-550°C, increment 1°C | Room temp.-550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) | ±10°C |
| Overheating protection | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) | PT1000 (accuracy ±0.2) |
| “Hot” warning | 50°C | 50°C |
| Data connector | RS232 | – |
| Protection class | IP21 | IP21 |
| Motor rating input | 18W | 15W |
| Motor rating output | 10W | 1.5W |
| Power | 1050W | 1030W |
| Heating output | 1000W | 1000W |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 215x360x112mm | 215x360x112mm |
| Weight | 5.3kg | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH |
Accessories & Package
Accessories & Package
