- Heating temperature rangeRoom temp: +5ºC-380ºC
- over heat protection: 420ºC
- Temperature display accuracy: ±0.1ºC
- External temperature sensor: PT1000 (accuracy ±0.5ºCJ)
- Control accuracy of sensor: ±20rpm

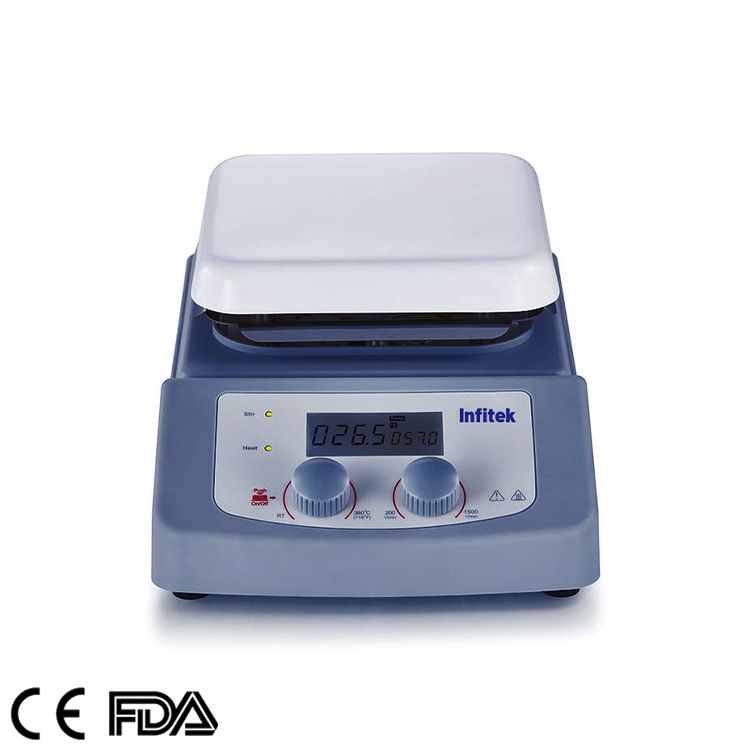

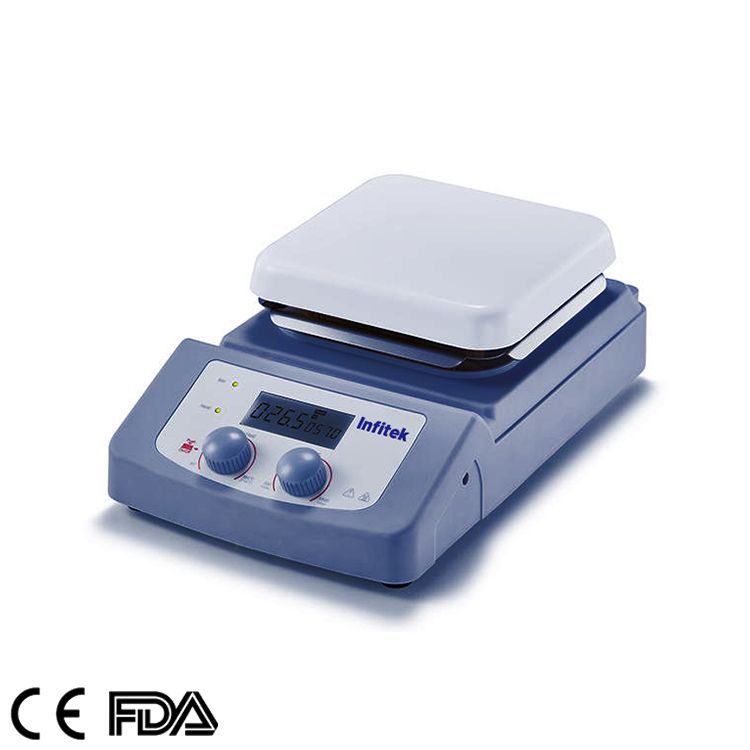

Hotplate Magnetic Stirrer, Temp. 380°C, HPS-380-1
Description
DESCRIPTION
DESCRIPTION
- Max. heating temperature is 380°C.
- High resolution LCD displays actual temperature and speed.
- Brushless DC motor is maintenance free.
- Aluminum cover with ceramic work plate, allows for immediate heat transfer.
- External temperature control is possible with temperature sensor PT1000.
- Digital temperature control with max. temperature at 380°C.
- Digital speed control with max. speed up to 1500rpm.
- Max. stirring quantity of H2O at 5L.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | HPS-380-1 |
| Work plate dimension [W×H] | 140×140 mm |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 5L |
| Max. magnetic bar [length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temp: +5ºC-380ºC |
| Over heat protection | 420ºC |
| Temperature display accuracy | ±0.1ºC |
| External temperature sensor | PT1000 (accuracy ±0.5ºCJ) |
| Control accuracy of sensor | ±20rpm |
| Protection class | IP21 |
| Motor rating input | 2.4W |
| Motor rating output | 1.8W |
| Power | 510W |
| Heating output | 500W |
| Voltage | 100-120/200-240V, 50/60Hz |
| Dimension [W×D×H] | 320×180×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5-40ºC, 80%RH |
