- Heating temperature range: Room temp.-550°C, increment 5°C
- Control accuracy of work plate: ±10°C
- Safety temperature: 580°C
- Temperature display: LED
- Temperature display accuracy: ±1°C
- External temperature sensor: PT1000(±0.5°C)

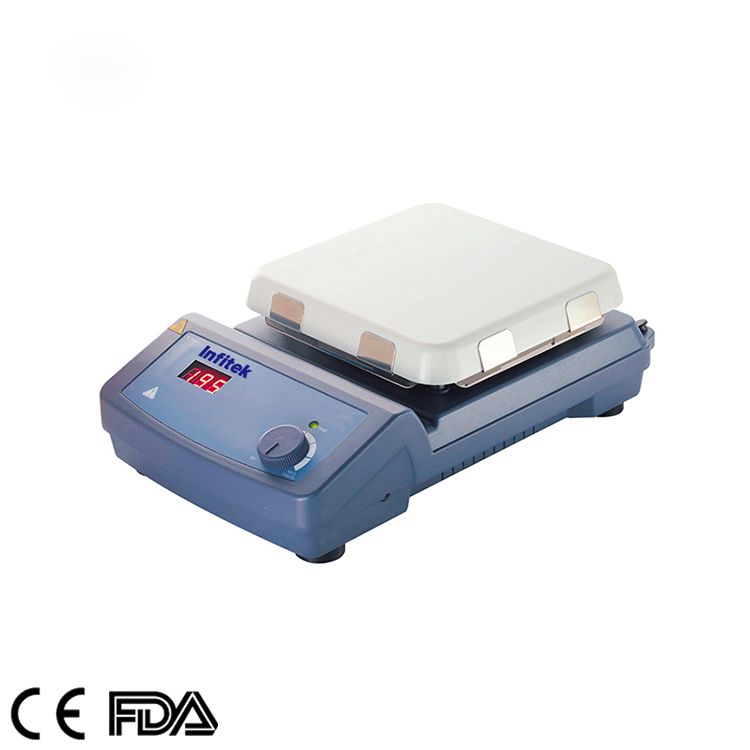

LED Hot Plate, Temp. 550°C, HPT-550
Description
•LED screen shows temperature
•Max. temperature up to 550°C
•Separate safety circuits with fixed safety temperature of 580°C
•External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.5°C
•Glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
•The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
Specifications
| Specifications | HPT-550 |
| Work plate dimension [WxD] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Heating position | 1 |
| Heating temperature range | Room temp.-550°C, increment 5°C |
| Control accuracy of work plate | ±10°C |
| Safety temperature | 580°C |
| Temperature display | LED |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000(±0.5°C) |
| Heating warning | 50°C |
| Protection class | IP21 |
| Power | 1010W |
| Voltage Frequency | 100-120/200-240V,50/60Hz |
| Heating Power | 1000W |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
