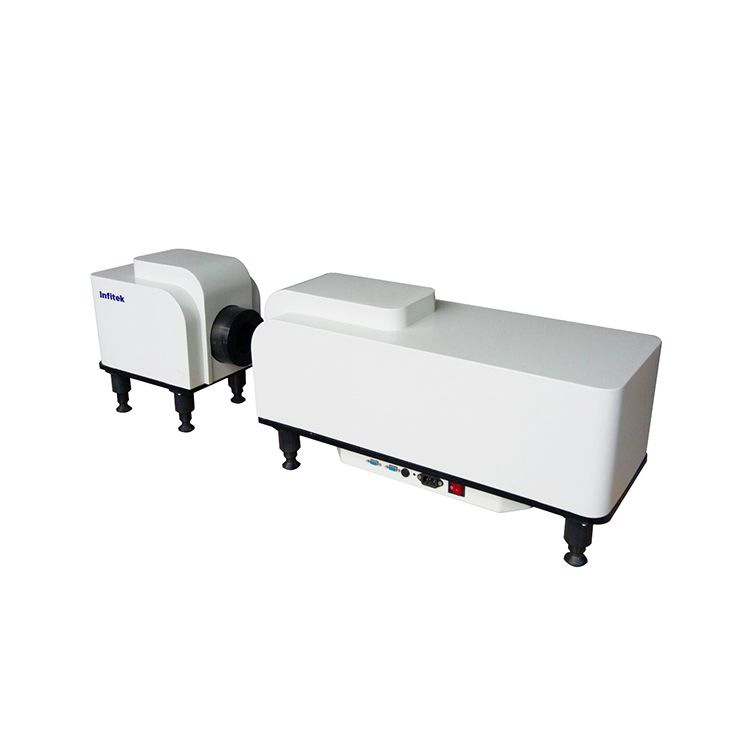

Industrial Spray Particle Size Analyzer, PSA-SI319 Series

Description

PSA-SI319 is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test. This instrument adopts Fraunhofer diffraction principle and parallel light path design with high-performance and high-power laser, lifetime>25000hours, which can meet the requirements of droplet test, with its range can be adjusted according to the customers’ requirement.

Advantages
Exclusive patent technology
Parallel optical testing technology
Spectrum amplification technique
Auxiliary integration photoelectric detector
Unique Airflow Protection Device
Len&User-friendly device
airflow protection device
Split-Type Structure Design
Advanced system and model
Table automatic optical path alignment system
Multiple size distribution model

Specifications

Models	PSA-SI319A	PSA-SI319B	PSA-SI319C
Executive Standard	ISO13320-1：1999，GB/T19077.1-2008，Q/0100JWN001-2013
Principle	Fraunhofer diffraction principle
Instrument Structure	Split-Type
Testing Range	1μm-500μm	1μm-1000μm		1μm-2000μm
Number of Channels	50 pcs	51 pcs		58 pcs
Accuracy error	<1% (Reference to CRM D50)
Repeatability error	<1% (Reference to CRM D50)
Reproducibility between instruments	<1% (Reference to CRM D50)
Data Acquisition Rate	≧2KHZ
Laser
	LD Pump Laser；λ=532nm, p>40mw, life time>25000 hour

Laser safety	Class 3B
Air purging system	Equipped with airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process.
Sampling Mode	Open Style
Optical alignment system	Automatic
Working temperature	10-40°C
Environment humidity	≤75%
Operation platform	Common model, Windows 7/8/10 (64 bits) need install Office 2003
Output parameters	Particle volume distribution curve, D10-D100 any parameters
Testing Area Length	0.1-10m/adjustable
Lens Protection	Double gas episodic
Outer Dimension	Transmit port: L369W295H360mm Receive port:L858W295H360mm
Electricity	220V, 50Hz
Weight	68Kg
