- Pixel: 12 million pixels
- Exposure: 1ms-60min
- Photosensitive Efficiency: High QE: >79%
- Pixel Merge: 1×1 2×2 4×4

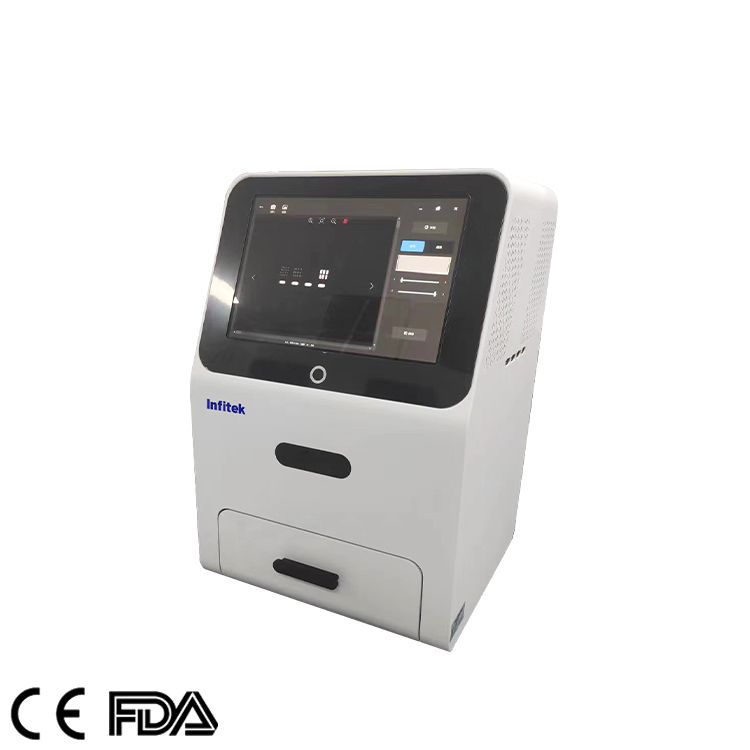

Integrated Gel Imaging System, GEP-GDX5T
Description
Application
Nucleic acid detection with various fluorescent dyes such as EB, SYBRGold, SYBR Green, SYBR Safe, Gel red, Gel Green, Texas Red, Fluorescein labeled DNA / RNA, etc.
Features
Highly integrated and fully automatic, simple interface, main interface oriented display shooting button and time control, easy to operate, no manual tedious debugging.
New module design, with fast focusing high-resolution CCD camera.
Less noise, high sensitivity, and large resolution.
F1.0 high-throughput 20 million high-definition auto focusing lens, and multi-layer coating special filter.
Specifications
| Model | GEP-GDX5T |
| Pixel | 12 million pixels |
| Exposure | 1ms-60min |
| Photosensitive Efficiency | High QE: >79% |
| Pixel Merge | 1×1, 2×2, 4×4 |
| Electric Lens | F=1:1.4, 20 million auto focus lens |
| Dynamic Range | ≥4.8 orders of magnitude |
| Image Density | 16 bit (0-65535 colors) |
| Ultraviolet Transmission | 302nm, optional transmission blue light |
| White Light Reflection | LED reflection (cold light) |
| White Light Transmission | White light conversion sample plate |
| Filter Lens | 590nm standard configuration, others optional |
| Shooting Area | Shooting area: 21x21cm |
| Timed Close | 1~60 minutes |
| Display | 12.5-inch touch HD display |
| Dimension | 360*362*566mm |
| N.W./G.W. | 19.5kg/22.3kg |
| Shipping Dimension | 450*462*666mm |
