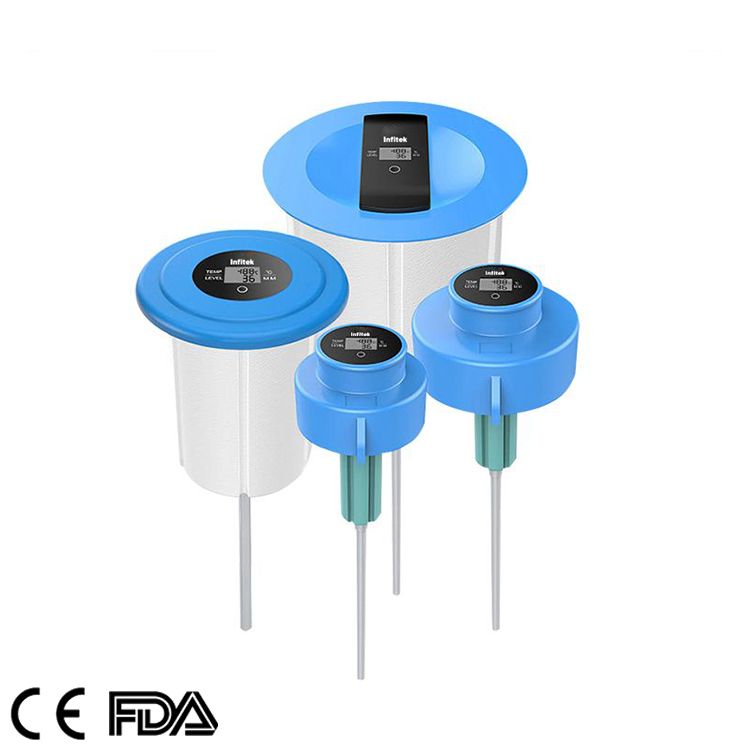

Liquid Nitrogen Tank Smart Cap, LT Series

  • Working Temperature:  -20~40℃
  • Temperature Measurement Range:  -200~200℃

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

Product Overview

SmartCap intelligent cork, with liquid nitrogen tank level monitoring and temperature monitoring functions of highly integrated low-power Internet of Things module. It is suitable for 50mm/80mm/125mm/216mm caliber liquid nitrogen tank products, and also compatible with other similar liquid nitrogen tank on the market (only internal height and caliber can be configured). Built-in high-efficiency nickel batteries, effective working time up to 2 years.

Product Features

  1. Double independent measurement system for high accuracy liquid level measurement and temperature measurement;
  2. Adopt internal imported special-shaped nickel battery for power supply, with long battery life.

SPECIFICATIONS

SPECIFICATIONS

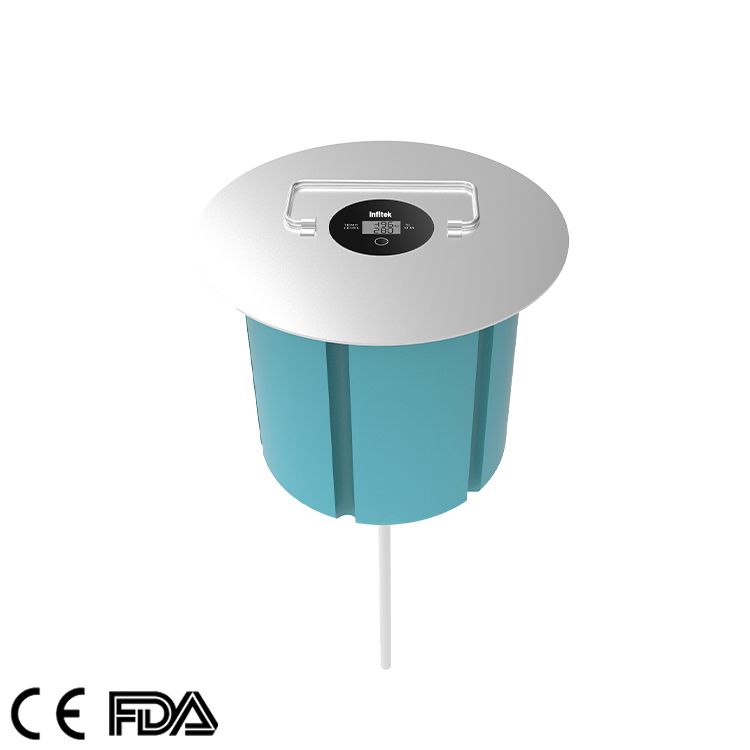

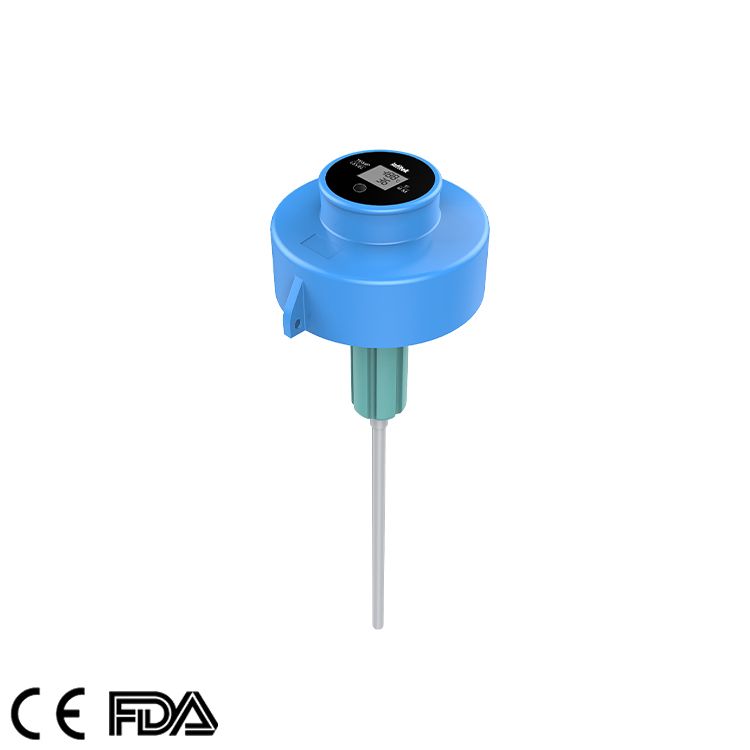

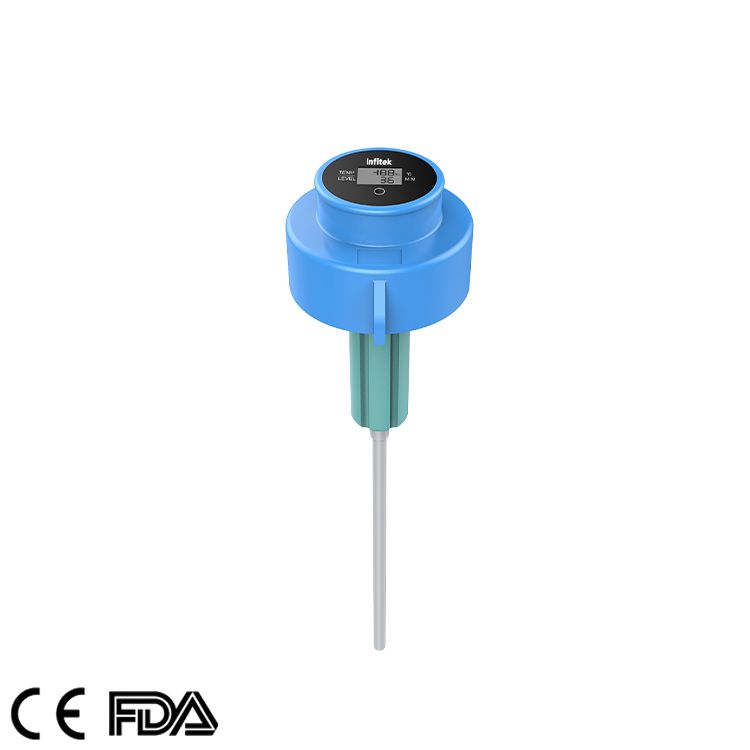

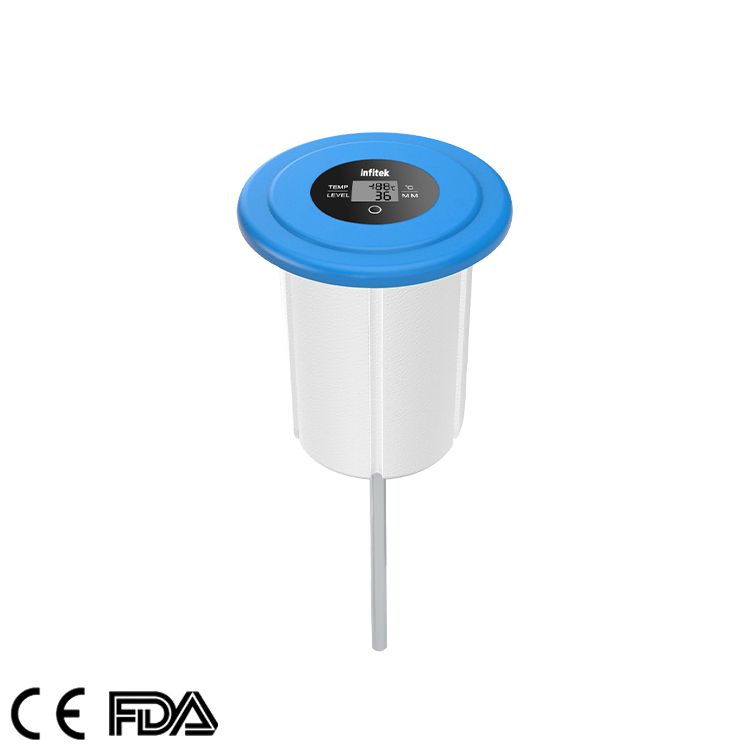

Model LT-50/LT-80/LT-125/LT-216
Working Temperature -20~40℃
Relative Humidity ≤75% (25℃)
Instrument Input Power Supply 3.6V
Level Sensor Capacitance
Temperature Sensor PT-100
Level Measurement Range 160~700mm
Level Error ±5 mm
Temperature Measurement Range -200~200℃
Temperature Error ±0.1℃

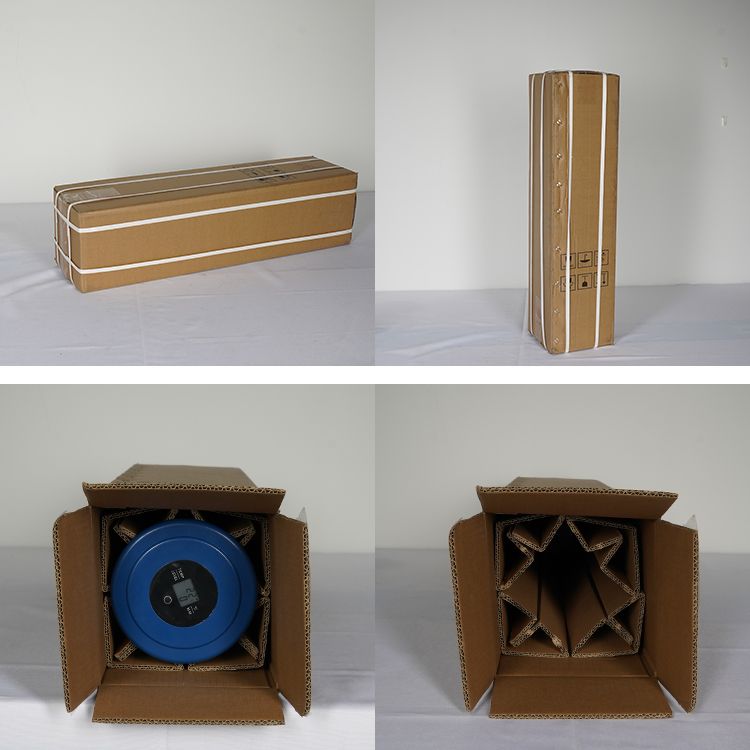

PACKING

PACKING

PACKAGE-2
