Magnetic Stirrer, MGS Series

Description

MGS-1C MGS-6P MGS-7S

Features:

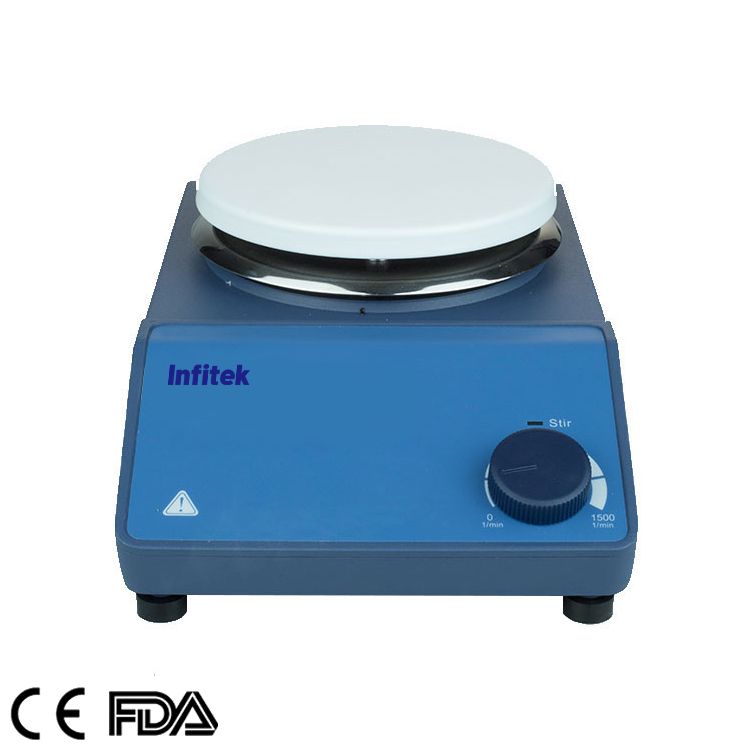

MGS-1C
•Maintenance free brushless DC motor.
•Speed range of 0-1500 rpm.
•Max. stirring quantity of H2O at 20L.
•Stainless steel work plate cover with ceramic material provides good chemical resistance performance.

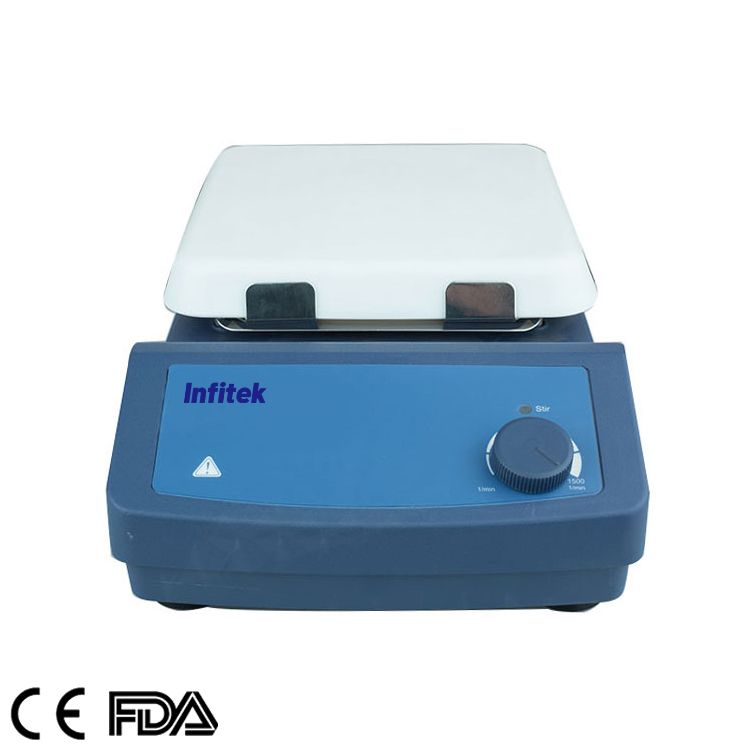

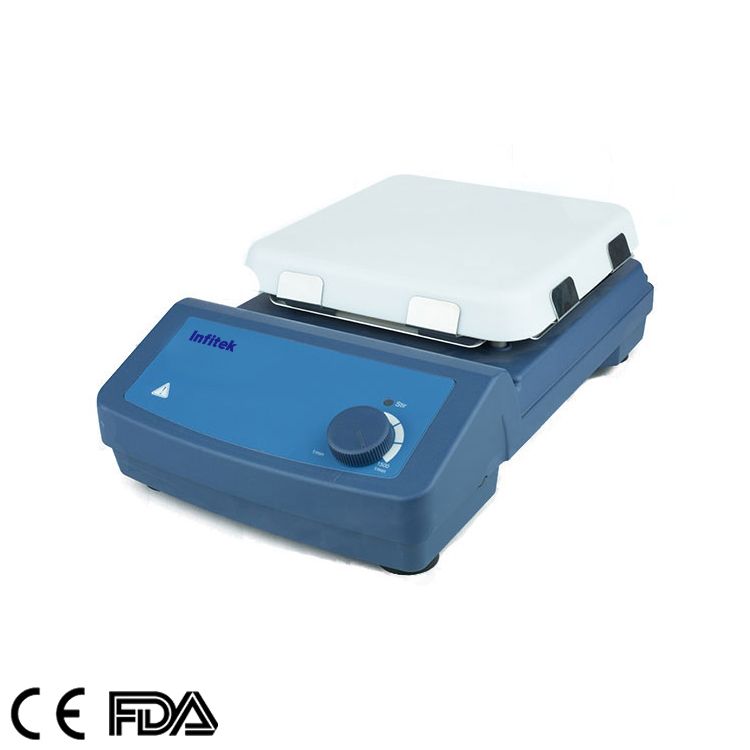

MGS-7S
•Speed range of 0-1500rpm.
•Max. stirring quantity of H2O at 10L.
•Ceramic work plate provides excellent chemical resistant performance.

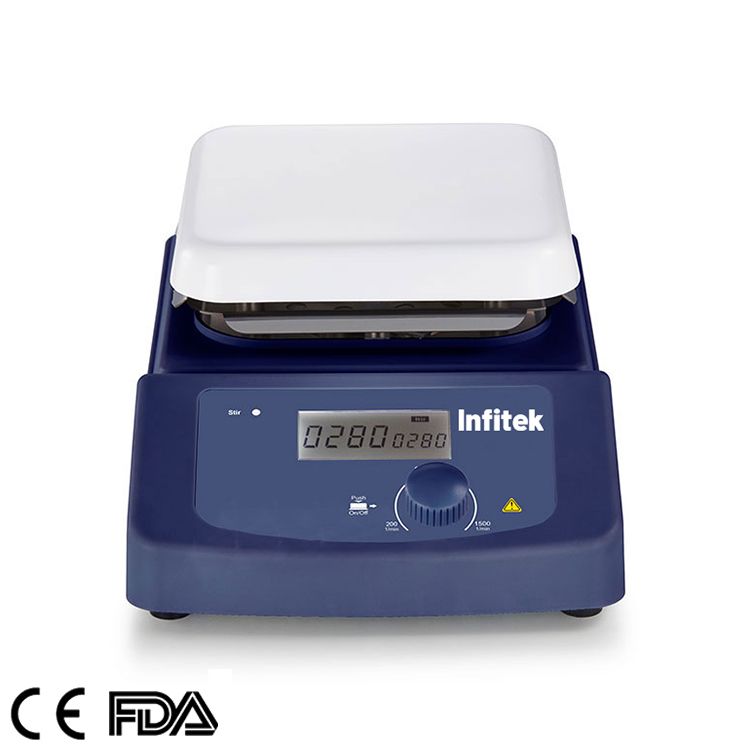

MGS-6P
•High resolution LCD displays actual speed.
•Brushless DC motor is maintenance free
•Aluminum cover with ceramic work plate provides good chemical resistant performance.
•Digital speed control with max. speed up to 1500rpm.
•Max. stirring quantity of H2O at 5L.

Specifications

Specifications	MGS-1C	MGS-7S	MGS-6P
Work plate dimension [W×H]	φ 135mm (5 inch)	184×184mm (7 inch)	140 ×140mm
Work plate material	Stainless steel cover with ceramic	Glass ceramic	Aluminum cover with ceramic
Motor type	Brushless DC motor	Shaded pole motor	Brushless DC motor
Stirring positions	1	1	1
Max. stirring quantity [H2O]	20L	10L	5L
Max. magnetic bar [length]	80mm	80mm	40mm
Speed range	0-1500rpm	0-1500rpm	200-1500rpm
Speed display	Scale	Scale	LCD
Protection class	IP42	IP21	IP21
Motor input power	18W	15W	2.4W
Motor output power	10W	1.5W	1.8W
Power	30W	30W	10W
Voltage	100-240V, 50/60Hz	100-120/200-240V, 50/60Hz	100-240V, 50/60Hz
Dimension [W×D×H]	160×280×85mm	215×360×112mm	320×180×108mm
Weight	2.8kg	3.8kg	2.2kg
Permissible ambient temperature and humidity	5-40℃, 80%RH	5-40℃, 80%RH	5-40℃, 80%RH
