- Melting-point measurement range: R.T.~300℃; R.T.~320℃
- Minimum digital display: 0.1℃
- Number of capillary: 1, 3
- Measurement methods: Automatic

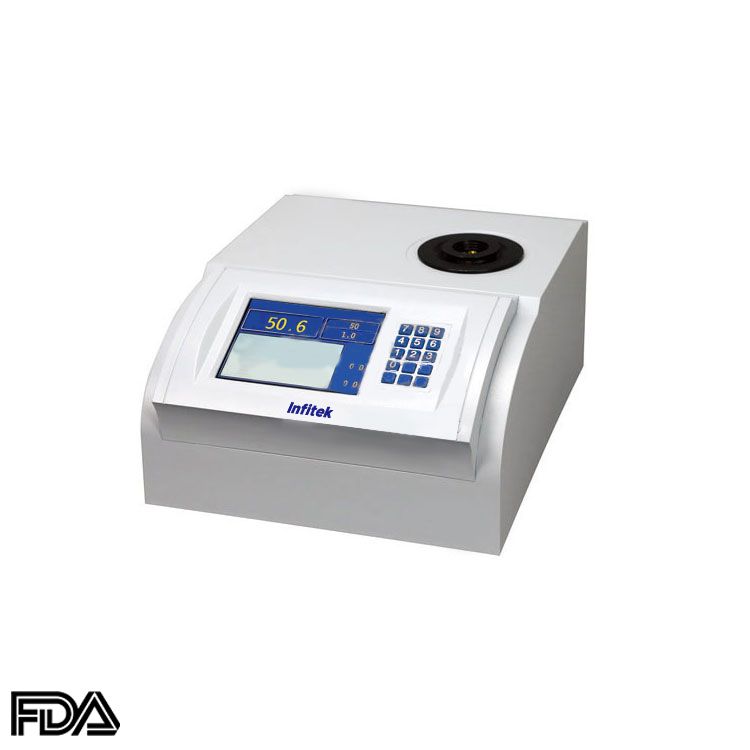

Digital Melting-Point Apparatus, MTP-2A/MTP-2/MTP-1B
Description
- Measurement of melting point is one of the important methods of measurement of purity
- To be used in production of medicines, dye-stuffs, perfumes and other organic crystalsubstances
- Photoelectric test
- LCD display, entry by digital keyboard and direct display of melting curve
- MTP-2A can measure 3 samples at the same time and calculate average value ofinitial and final melting points automatically
Specifications
| Parameters/Model | MTP-2A | MTP-2 | MTP-1B |
| Melting-point measurement range | R.T.~300℃ | R.T.~320℃ | |
| Minimum digital display | 0.1℃ | ||
| Linear heating-up rate | 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 ℃/min | ||
| Accuracy | ≤200℃: ±0.4℃; 200~300℃: ±0.7℃ | ≤200℃: ±0.4℃; >200℃: ±0.7℃ | |
| Repeatability | 0.3℃ (heating rate: 1.0℃/min) | ||
| Size of the capillary | Φ1.4mm (outside diameter);Φ1.0mm (inside diameter);Length: 90mm | ||
| Number of capillary | 3 | 1 | 1 |
| Loading height of the sample | 3mm | ||
| Display | 5.6-inch color LCD | ||
| Interface | RS232/USB | ||
| Weight (Gross) | 11 kg | ||
| Overall Dimensions | 500mm×430mm×310mm | ||
