- Main Function: Heating, Cooling
- Temp. control range: RT-20/+5℃～100℃
- Optional blocks: 15-32 wells for 0.2/0.5/1.5/2.0ml tubes
- Built-in over-temperature protection device
- Automatic fault detection function with buzzer alarm.

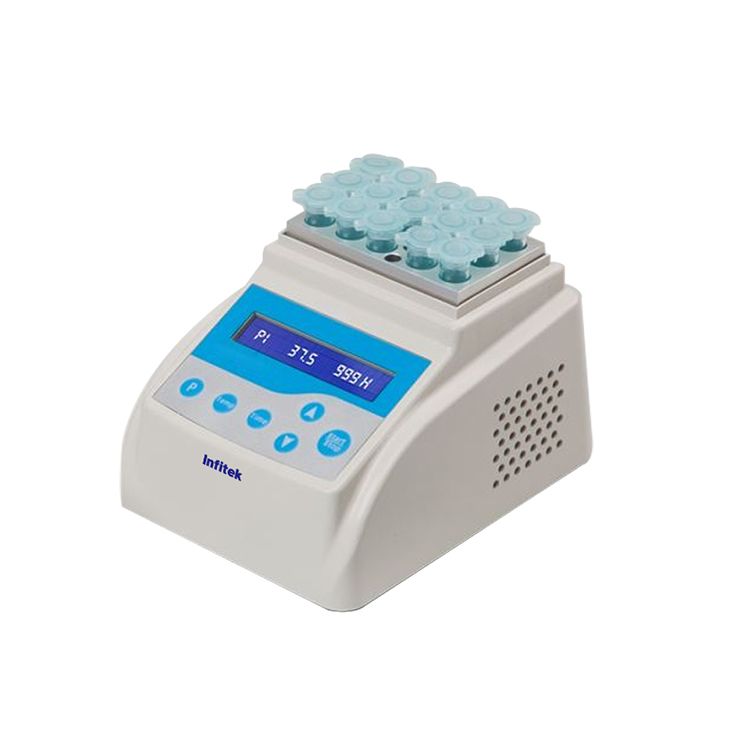

Mini Dry Bath Incubator, DBI-Mini100/100R
Description
DBI-Mini100/100R is a microprocessor-controlled product. It is widely used in preservation and reaction of samples, DNA amplification and initial denaturation of electrophoresis and so forth. It fits almost anywhere and can even be used in cars, boats or wherever a 100~240V power source is available.
1.Compact, fits on any crowded benchtop.
2.Various blocks for optional choice.
3.Custom blocks available upon request.
4.Built-in over-temperature protection device.
5.Automatic fault detection function with buzzer alarm.
Specifications
| Project | Parameters | |
| Product Model | DBI-Mini100 | DBI-Mini100R |
| Temp. setting range | 0℃～100℃ | -10℃～100℃ |
| Temp. control range | RT+5℃～100℃ | RT-20℃～100℃ |
| Timing range | 1sec ~ 99min59sec/∞ | 1sec ~ 99min59sec/∞ |
| Temp accuracy | ≤±0.3℃ | |
| Temp. uniformity | ≤±0.3℃ | |
| Display accuracy | 0.1℃ | |
| Heating time | ≤20min(from 40℃ to 100℃) | ≤20min(from 25℃ to 100℃) |
| Cooling time 1 | — | ≤20min(from 100℃ to 25℃) |
| Cooling time 2 | — | ≤25min(from RT to RT-15℃) |
| AUTO-4℃ | — | Yes |
| Multi points running | — | Yes(Max. 5points) |
| Multi cycle | — | Yes(Max. 99times) |
| Auto heating | — | Yes |
| Auto running | Yes | |
| Auto resume to run | Yes | |
| Voltage | DC24V/1.67A | DC12V/5A |
| Power | 40W | 60W |
| Dimensions(L*W*H)(mm) | 145×113×110 | 145×113×140 |
| Weight(kg) | 0.5 | 1.0 |

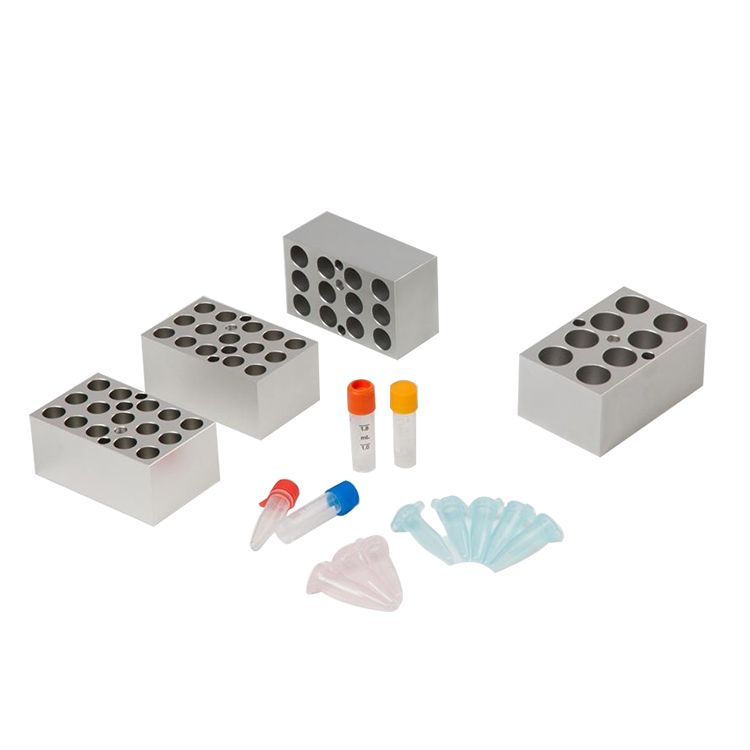

Optional Blocks:
| Type | Description |
| MiniBoxA | 15×2.0ml |
| MiniBoxB | 15×1.5ml |
| MiniBoxC | 24×0.5ml |
| MiniBoxD | 32×0.2ml (for 0.2ml PCR 8-tube strip) |
