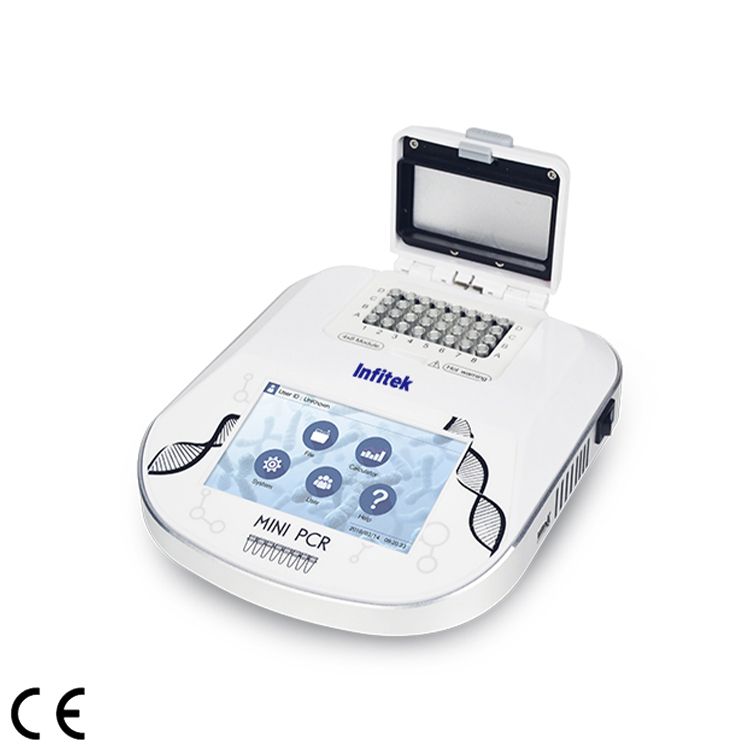

Mini PCR Machine, PCRTC-32
Description
The PCR Machine PCRTC-32 is an ultra-light and ultra-thin thermal cycle gene amplification instrument. Widely used in molecular biology, criminal investigation, disease research and other fields.Mini portable for car use.
- New and unique appearance, the interface operation is simple and convenient, ultra-light ultra-thin.
- Hot lid can be switched on and off, and test tube temperature control mode and module temperature control mode can be choose to meet more different experimental requirements.
- Can be quickly upgraded via U disk, convenient for instrument software update.
Specifications
| Model | PCRTC-32 | ||
| Single step time range | 1~59m59s(0 is forever) | Temp. range | 4~99.9℃ |
| Sample capacity | 32×0.2ml | Max. heating rate | 6℃/s |
| Max. cooling rate | 5℃/s | Temp. uniformity | ±0.25℃ |
| Temp. accuracy | ±0.20℃ | Temp. display resolution | 0.1℃ |
| Temp. control method | Block/Tube | Gradient temp. uniformity | ±0.3℃ |
| Gradient temp. accuracy | ±0.3℃ | Gradient temp. range | 30~99.9℃ |
| Gradient temp. difference range | 0.1~30℃ | Hot cover temp. range | 30-110℃ |
| Max. steps of the program | 30 | Program max. cycle number | 99 |
| Time increment/decrement | -599~+599s | Temp. increase/decrease | -9.9~+9.9℃ |
| Program pause function | Yes | 16℃ Insulation | Forever |
| LCD | 5 inch, 800×480 Pixel | Program storage quantity | ＞100 |
| Communication Interface | USB 2.0 | Input power | 24V,8A |
| Dimensions(W×D×H) | 200×230×85mm | Net weight | 3.2kg |
