- Number of gels: 1-2 pieces
- Sample comb:10, 15 teeth
- Can be used as double glue, and the strip is clear
- 99.99% high purity platinum electrode

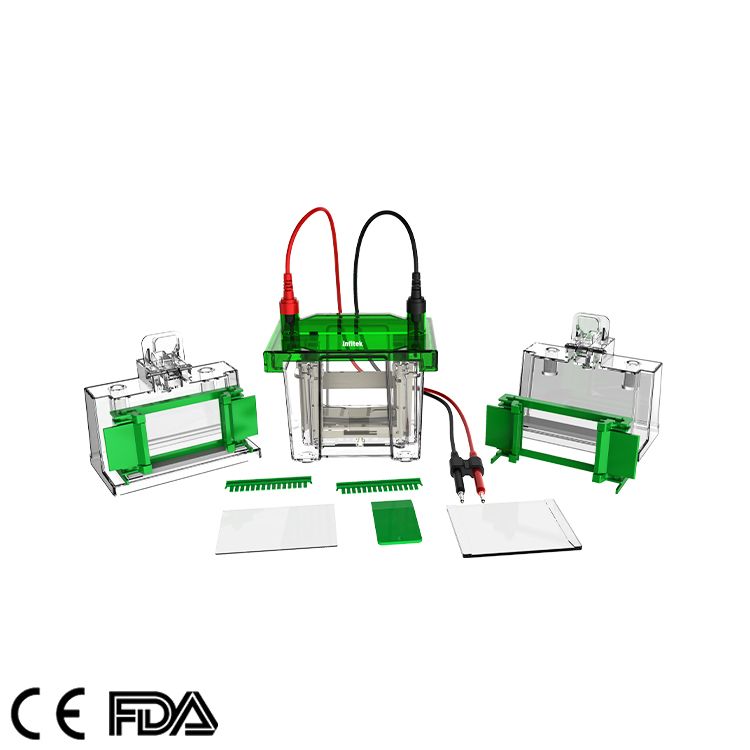

Mini Vertical Electrophoresis Tank, GEP-VH-1
Description
Usage:
This product is a device for vertical electrophoresis of a small number of accounting and protein samples.
Features:
- High transparency polycarbonate injection molding, durable, easy to observe;
- Integrated design of glass gasket ensures no glue leakage.
- Instead of flat concave plate, it is not easy to damage and cheap.
- Special glue making rack, simple and reliable glue making operation.
- Opening and closing the cover to ensure the safety of the experiment
- Upper cover limit function, to ensure that the wrong electrode polarity will not be connected.
- Opening and closing the cover to ensure the safety of the experiment
- At the same time, it can be used as double glue, and the strip is clear;
- 99.99% high purity platinum electrode has the best conductivity and strong corrosion resistance.
Specifications
| Basic parameters: | |
| Overall dimensions (l*w*d) | 150*120*130mm |
| Gel size (L*W) | thick plate 101*83 thin plate 101*73mm |
| Gel area (L*W) | hand jar glue 8.3*7.3cm prefabricated glue 8.6*6.8cm |
| Number of gels | 1-2 pieces |
| Sample comb | 10, 15 teeth, |
| Gel thickness | 0.75, 1.0 and 1.5mm thick (optional) |
| Total buffer capacity | about 700ml |
| Deploy | ||
| name | specifications | quantity |
| Electrophoresis tank (lower tank) | one | |
| Electrophoresis tank (upper cover) | one | |
| Electrode core (including gasket) | one | |
| Inner core frame | one | |
| Rubber seat (including gasket) | two | |
| Rubber frame | two | |
| Single rubber baffle | one | |
| Rubber shovel | one | |
| glass frame | one | |
| Thick glass plate | five | |
| thin glass plate | . | five |
| Sample comb | 10 teeth | two |
| 15 teeth | two | |
| Electrophoretic wire | one | |
