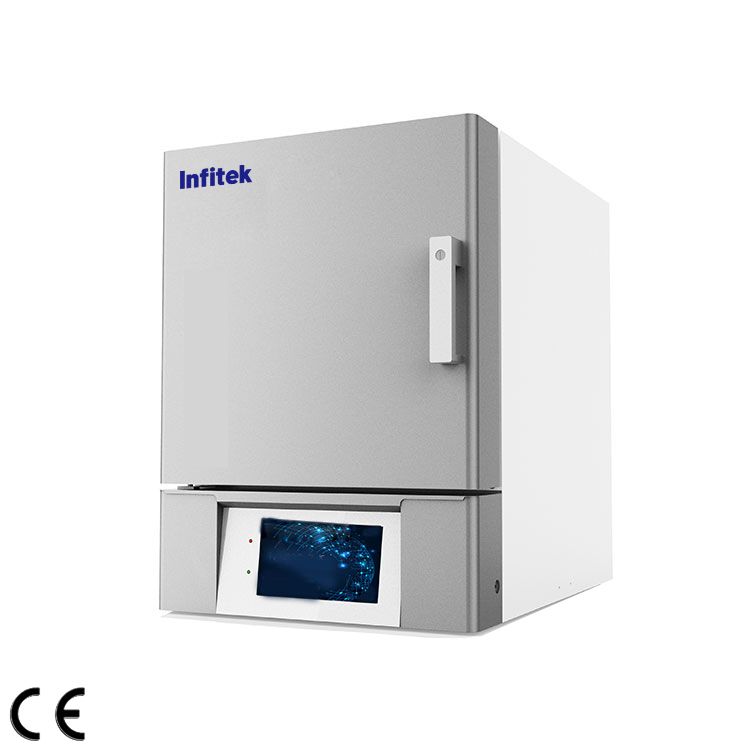

Muffle Furnace,Box-type, FNC-BX-R Series

Box-type resistance furnace, also known as muffle furnace or Mafu furnace, is a basic heating equipment in the laboratory. And it is widely used in industrial and mining enterprises, aviation, aerospace systems, research institutes, universities and other experimental laboratories. What is more, it is an essential instrument for material sintering, melting, heat treatment, volatilization, etc.

Product Feature
The new generation of box-type resistance furnace is the result of our company’s design and manufacturing experience in many years, with stable and reliable performance, and it has a number of patents.
Integrated design with a large furnace door: a resistance furnace with modern beautiful appearance.
Design of the furnace door structure: adopt inner and outer dual-door structure; the inner door keeps certain hovering pressure to ensure the high temperature and heat inside the furnace will not leak outside, and the outer door is the carrier of the inner door and has the function of protection and decoration.
Automatic power off (when the furnace door opens) protection system: when the furnace door is opened, the “protection switch”
will start automatically and the main circuit (heating element) stops the power supply, which can effectively protect the safety of operators.
When the furnace door is closed, the “protection switch” will automatically close, and the main circuit will automatically recover its supply power.

Operating system
FNC-BX1700-5R：
1.They adopt 5-inch color touch screen, and the information display is detailed, easy to understand and operate.
2.The input method of recipe program is tabular fast input method with clear logic, fast speed and not easy to go wrong 0-40 sections of program can be arbitrarily selected and set.
3.Dual-mode of single point heating and curve heating that can be arbitrarily selected. 4.Intelligent P, I, D self-adjustment with high precision, reliability and stability.
5.Segmented power supply and restart function to avoid power failure preventing potential risks.
FNC-BX1200-2R,FNC-BX1200-7R,FNC-BX1200-12R：
1.Microcomputer program controls the temperature, time, heating speed and other programs, and conducts various sintering tests at an extremely fast speed.
2.Programmable controller, can preset 7 groups of 63 steps, 9 steps in each group, and the setting time of each group is 0~5999 minutes.
3.With multi-segment programmable control to truly realize automatic control and operation.
