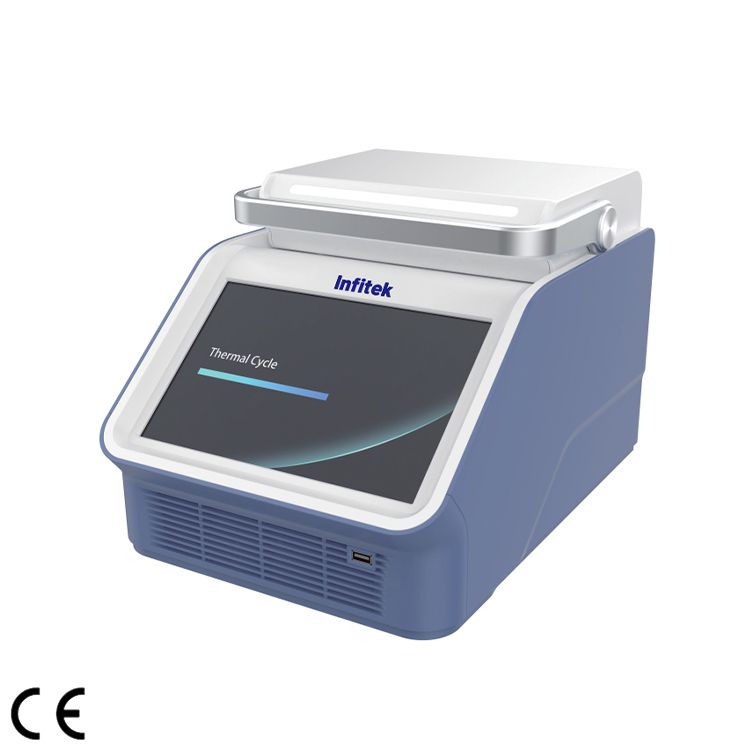

PCR Machine, PCR-96A

Description

This PCR machine has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life Peltier heating units and max. ramping rate is 8℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.

High heating and cooling rate, max. Ramping rate is 8 ℃/s
Automatic restart after power failure. When power is restored it can continue to run unfinished program.
One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
Android operation system and 10.1 inch capacitive touch screen.

Specifications

Model	PCR-96A
Capacity	96×0.2ml
Tube	0.2ml tube, 8 strips, Half skirt 96 wells plate, No skirt 96 wells plate
Temperature Range	0-105℃
MAX. Ramp Rate	5℃/s
Uniformity	≤±0.2℃
Accuracy	≤±0.1℃
Display Resolution	0.1℃
Temperature Control	Block/Tube
Ramping Rate Adjustable	0.1-5℃
Gradient Temp. Range	30-105℃
Gradient Type	Normal Gradient
Gradient spread	1-42°C
Hot Lid Temperature	30-115°C
Number of Programs	20000+(USB FLASH)
Max. No.of step	30
Max. No.of cycle	200
Time Increment/Decrement	1Sec-600 Sec
Temp.Increment/Decrement	0.1-10℃
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4℃	Forever
Touchdown Function	Yes
Long PCR Function	Yes
Language	English
Computer Software	Yes
Mobile phone APP	Yes
LCD	10.1 inch，1280×800 pels
Communication	USB2.0， WIFI
Dimensions(L×W×H)	560mm×440mm×420mm
Weight	14Kg
Electricity	100-240VAC , 50/60Hz , 600 W
