- Plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic
- Illuminating/Viewing Geometry: 8/d
- Measuring Aperture: Φ8mm
- LED blue light excitation
- Light Source: D65 D50 A

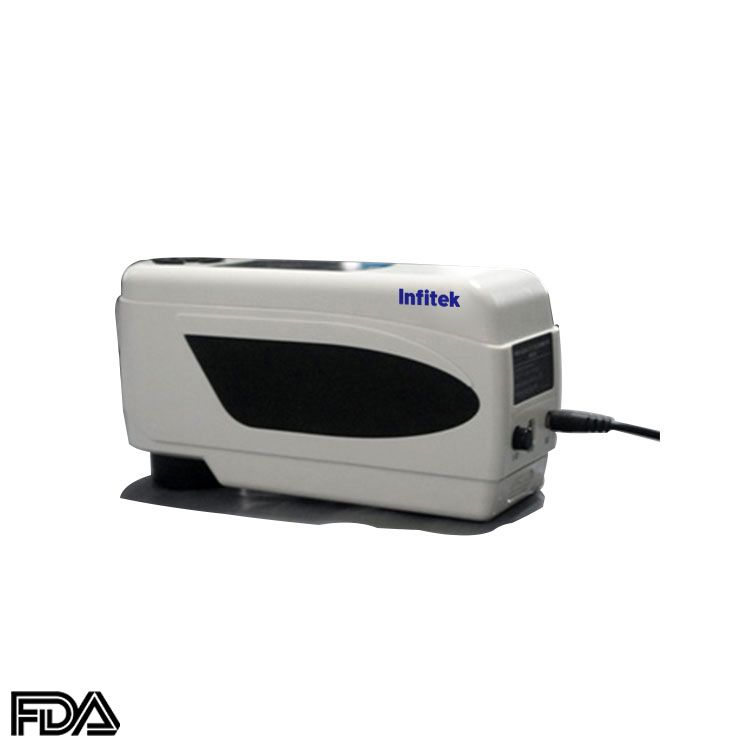

Multifunction Portable Colorimeter, SP-CLR300, SP-CLR310
Description
Colorimeter
High-End Brand of Domestic Colorimeter
1. Leading Humanity Design and Convenient Operation
- Auto White and Black Calibration at Startup
- Structure Design in line with Ergonomics
- Easy-to-use Operation Interface
2. Stable Measurement Performance
- The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.
- Portable structure design which is more conductive to keeping the instrument stable when using.
3. Flexible and Accurate Locating
- Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.
- Illumination locating is a fast, simple and convenient locating function which is the original function.
4. More Measurement Modes
- Three measuring apertures for more circumstances.
- Five color spaces for more color schemes selection.
- Three light sources for more circumstances.
5. PC Software—Realize More Function Expansion
- The corresponding software serial number and password protection are configure.
- Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc..

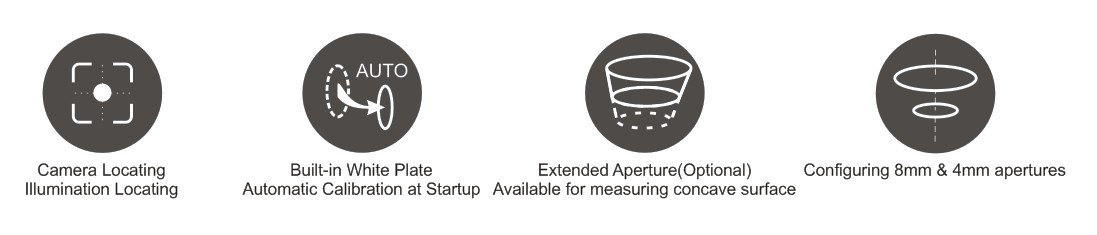

National Patent and Innovative Technology
No. 1 Camera locating and illumination location (NH310 has new functions of double locating.)
No. 2 Built-in white plate; Automatic calibration at startup (for SP-CLR310)
No. 3 Extended aperture (optional), available for measuring concave surface
Specifications
| Model | SP-CLR300 | SP-CLR310 |
| Illuminating/Viewing Geometry | 8/d | 8/d |
| Measuring Aperture | Φ8mm | Φ8mm/Φ4mm |
| Detector | Silicon photoelectric diode | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness |
| Color Difference Formula | △E*ab △L*a*b △E*C*h | △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter |
| Light Source | D65 | D65 D50 A |
| Light Source Device | LED blue light excitation | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40ΔE*ab | ≤0.40ΔE*ab |
| Storage | 100pcs standards 20000pcs samples | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate | Standard deviation within ΔE*ab 0.06
Average of 30 measurements of standard white plate |
| Weight | 500g | 500g |
| Dimension | 205×70×100 mm | 205×70×100 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours–100% electricity) | 2 hours (first time 8 hours–100% electricity) |
| Measuring Times Before Recharging | more than 3000 times | more than 3000 times |
| Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation | -10~40℃, relative humidity 0~85% with no condensation |
| Data Interface | USB | USB |
| Extended Aperture (optional) | – | Φ8mm extended aperture, available for measuring concave surface |
| Printer (optional) | Miniature thermal printer | Miniature thermal printer |
