- Fruits, fabrics, paper, plastic parts, construction materials
- Measuring Aperture: Φ4mm
- Detector: Silicon photoelectric diode
- Locating: Illuminating Locating/ Cross Locating
- Light Source Device: LED blue light excitation

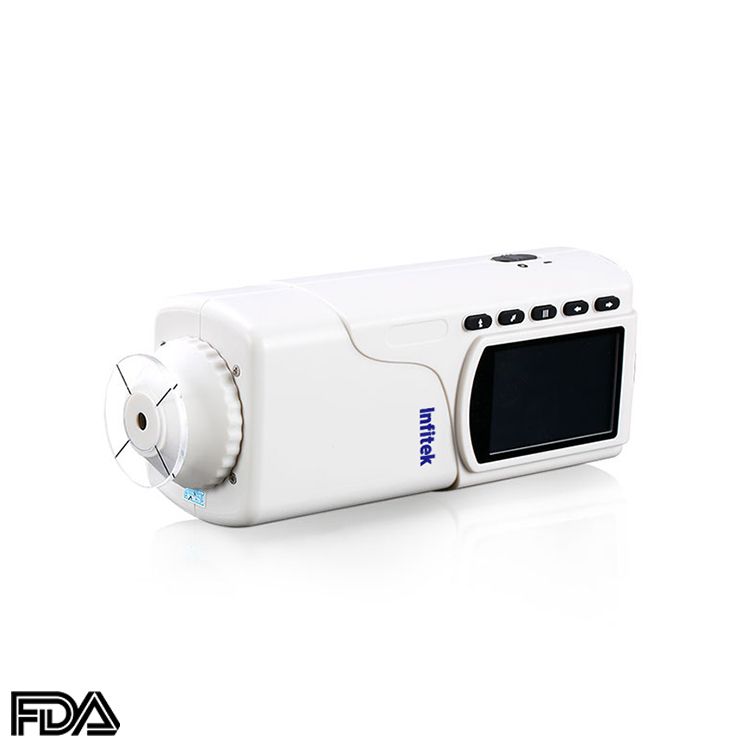

Portable Colorimeter, Precision and Cheaper, SP-CLR110
Description
Colorimeter
1. Built-in white plate parameters. No need to calibrate each time which realizes rapid measurement.
2. Double Locating: Illuminating locating and precise cross locating.
3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
4. New Integrating Sphere Optical Path Design: Eliminating the stray light of the main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
5. 4mm Measuring Aperture.
6. Equipped with the rechargeable high-capacity Li-ion battery. No need to purchase a battery repeatedly.
7. Configures CQCS3 software. Connects PC computer to realize more functions.
8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
9. Hand-head structure: small and convenient; makes the measurement easier.
10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
11. Spending huge sums on high-end mold. Product consistency approaches 100%.
12. High-cost performance: large output, good quality, cheap products.
Specifications
| Model | SP-CLR110 |
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end-face and small concave-convex end-face |
| Color Space | CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate |
| Language | English/Chinese |
| Weight | 450g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 8 hours–100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
