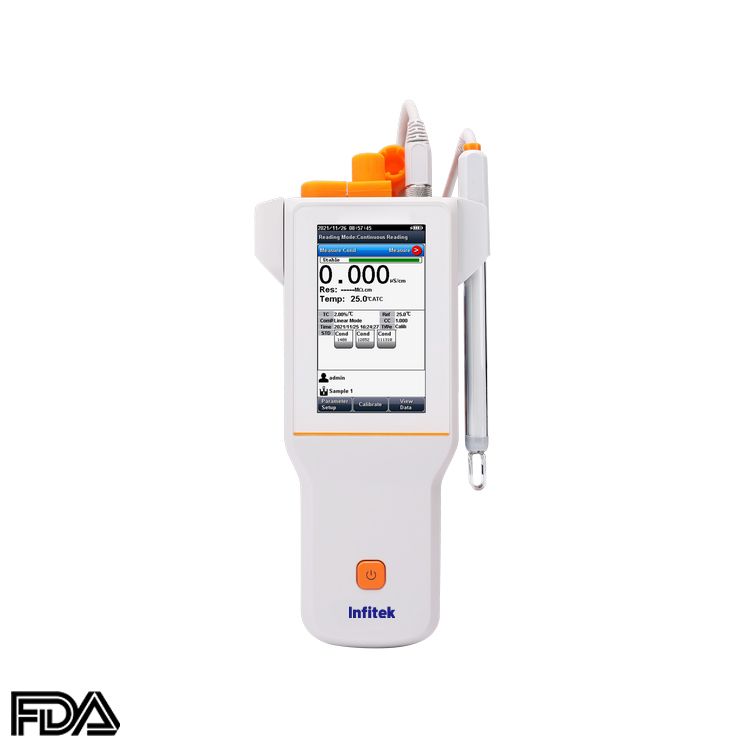

Portable Conductivity Meter, CON-P310T

  1. Auto-power off
  2. Multi-reading feature
  3. IP65 waterproof
  4. 1-3 points calibration with standard recognition

Share the product

Description

The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.

Advantages
4.3-inch Color High contrast LCD touchscreen
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data capacity of up to 500 sets for each parameter (GLP-compliant).
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof.
1-3 points calibration with standard recognition.
Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
Temperature compensation type (none, linear, pure water).

Specifications

Model CON-P310T
Conductivity Range 0.000 μS/cm to 1000 mS/cm
Resolution 0.001 μS/cm minimum,

various with range selection

Accuracy ±1.0% FS
Reference Temperature 20, 25 ºC
Calibration Points Up to 3
Standard Recognition 84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity Range 5.00 Ω ·cm~20.00 MΩ ·cm
Resolution 0.01Ω ·cm minimum,
Accuracy ±1.0% FS
TDS Range 0.00ppm~300ppt
Resolution 0.001ppt minimum, 3 significant digits
Accuracy ±1.0%FS
Salinity Range 0~80 ppt
Resolution 0.1 ppt
Accuracy ±2 ppt
Temperature Range -5 to 110 ºC, 23 to 230 ºF
Unit ºC, ºF
Resolution 0.1
Relative Accuracy ±0.2
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB PC, printer
Display options Backlight Yes
Auto Shutdown 300, 600, 1200, 1800, 3600sec., off
IP Rating IP65
Date and Time Yes
General Electricity Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions 90× 255 ×40 mm
Weight 500g
