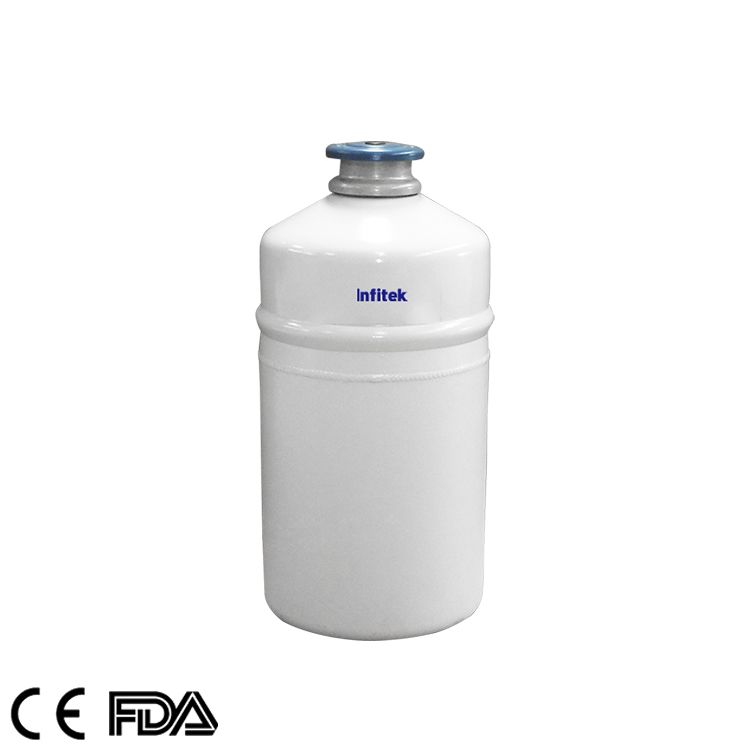

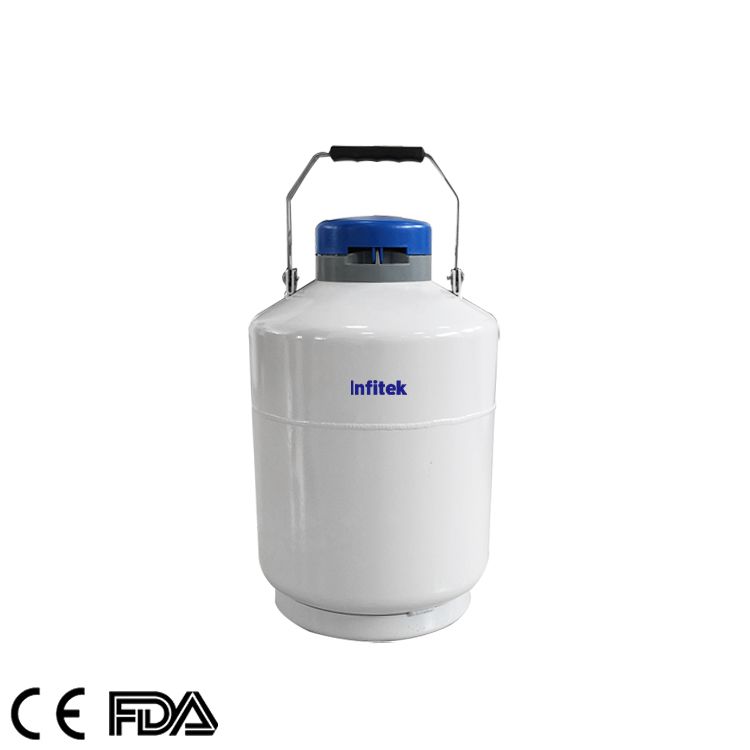

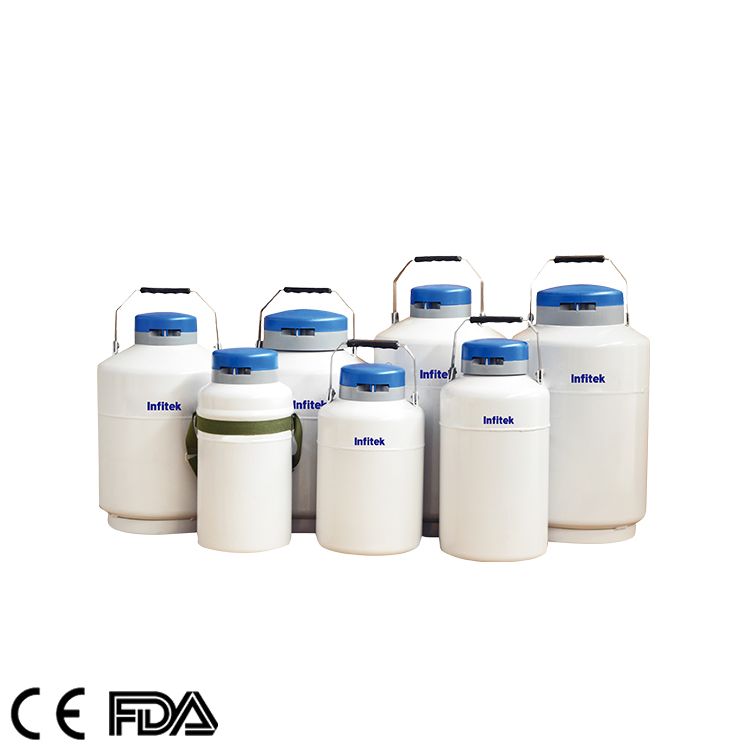

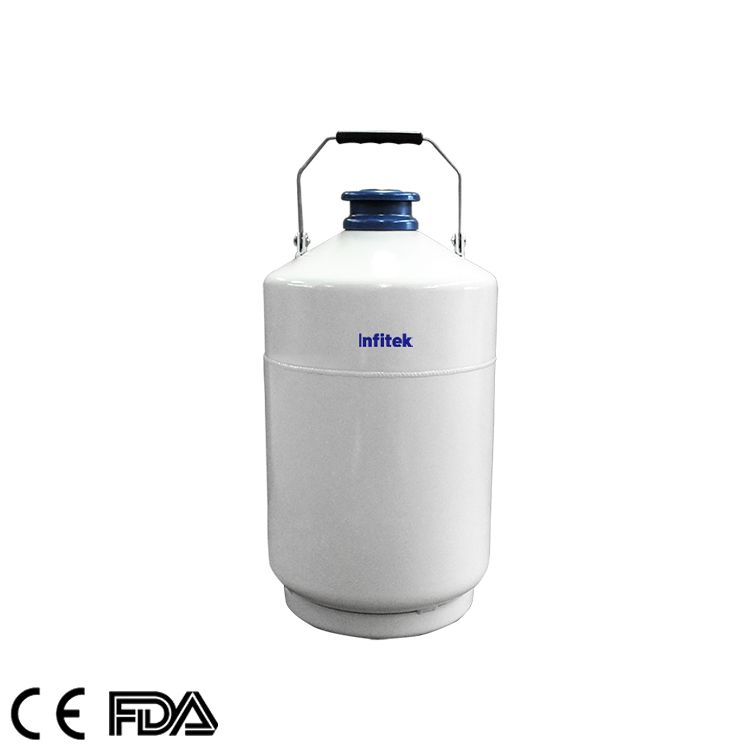

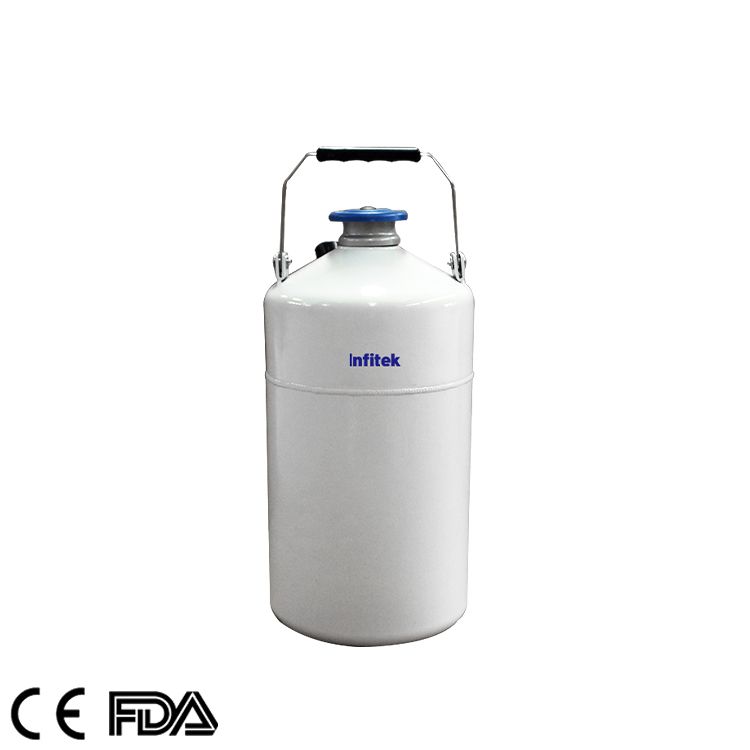

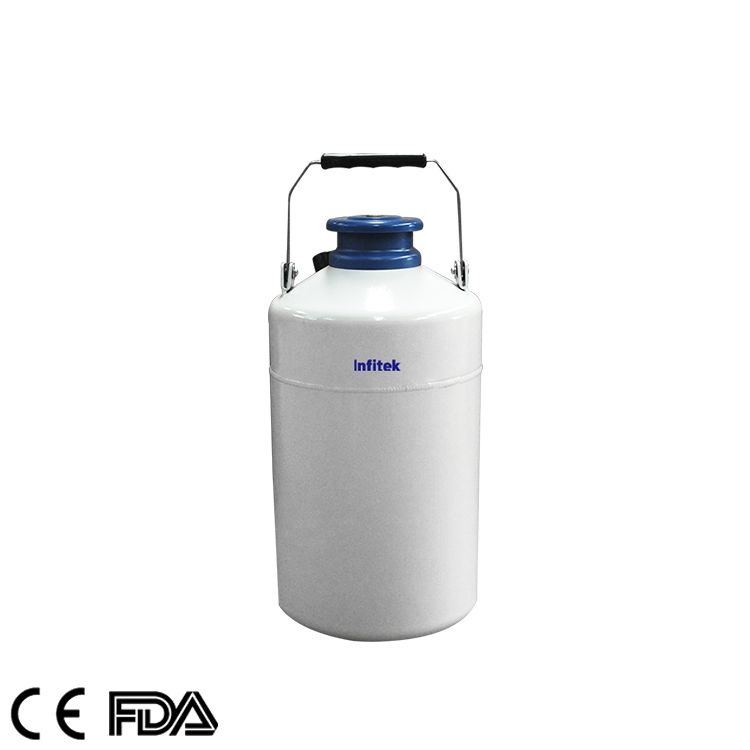

Portable Storage Liquid Nitrogen Tank, LNC-P Series

  • LN2 Capacity:  2L; 3L; 6L; 10L
  • Neck Opening : 30mm; 35mm; 50mm
  • Round pail storage
  • For biological samples that often need to be moved

Share the product

Category:

Description

Product Overview

The liquid nitrogen tanks are essentially a large vacuum container with insulation inside the vacuum chamber, much like an oversized thermos.

Portable storage series liquid nitrogen tank is an economical and practical small liquid nitrogen tank specially designed for biological samples that need to be stored regularly. The series is small in size and light in weight. It is made of high strength light aluminum alloy and contains multi-layer super-strong heat insulation layer. It realizes the safety, lightness and efficiency of the product and has many accessories to choose from.

Product Features

  1. High strength, light weight and small size aluminum structure;
  2. Equipped with belt;
  3. Ultra low evaporation loss;
  4. Number coding for canister place;
  5. Lockable lid is optional to prevent unauthorized open;

Specifications

Model LNC-P2-30 LNC-P2-35 LNC-P3-50 LNC-P6-50 LNC-P10-50
Performance
LN2 Capacity (L) 2 2 3 6 10
Weight Empty (kg) 2.8 2.6 3.1 4.8 6.1
Neck Opening (mm) 30 35 50 50 50
Outer Diameter (mm) 223 204 223 300 300
Overall Height (mm) 399 428 435 482 552
Static Evaporation Rate (L/day) 0.07 0.08 0.12 0.12 0.12
Static Holding Time (day) 28 24 26 52 86
Maximum Storage Capacity
Canister Diameter (mm) 19 25 38 38 38
Canister Height (mm) 120 120 120 120 120
Number of Canisters (ea) 3 3 6 6 6
Straws Capacity (120 mm canister) 0.5ml (ea) 90 165 792 792 792
0.25ml (ea) 204 330 1788 1788 1788
Straws Capacity (276 mm canister) 0.5ml (ea)
0.25ml (ea)
Optional Accessories
Lockable Lid P P P P P
PU Bag(Protective jacket) P P P P
Smart Cap P P P
