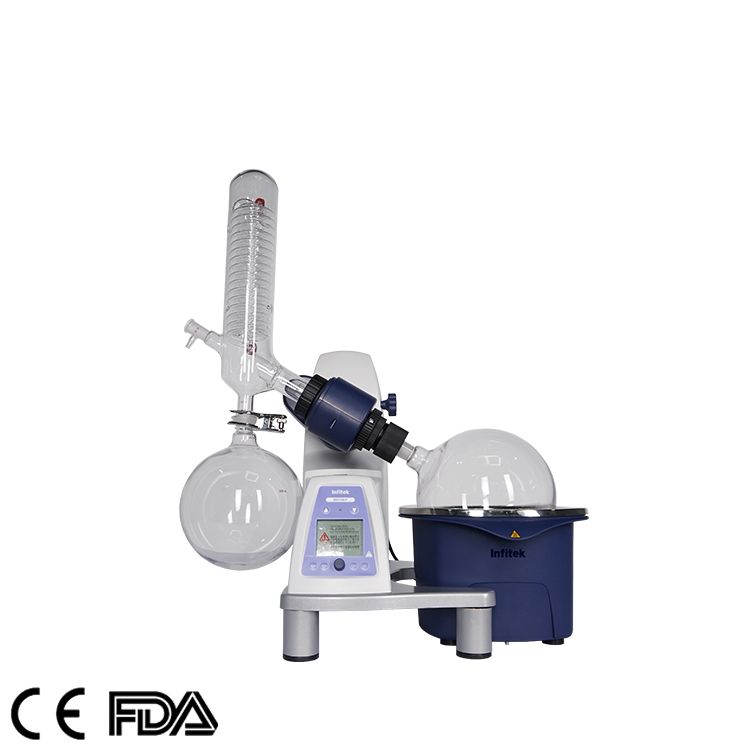

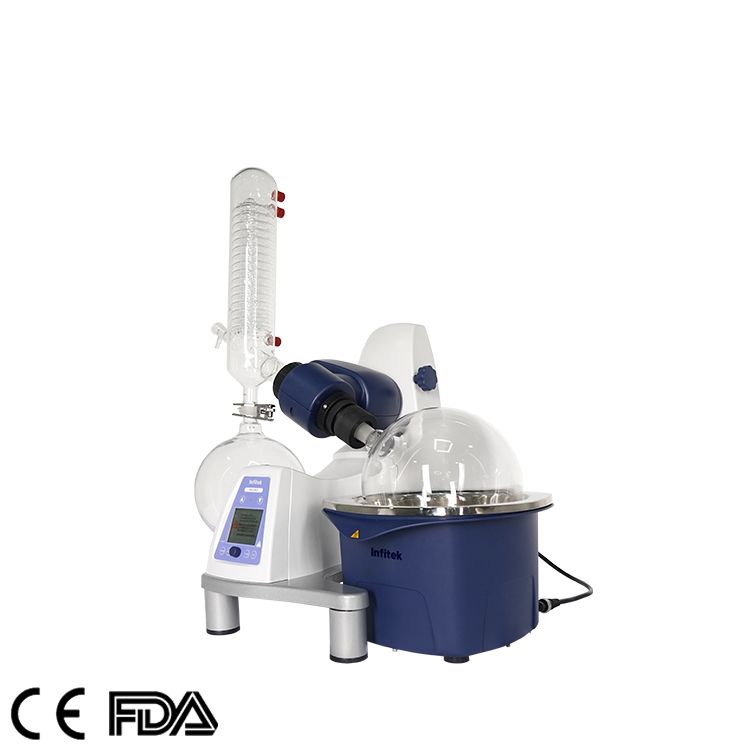

Rotary Evaporator, Lab Scale, REV100-P

Description

Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
Automatic motor lift releases the evaporating flask to a safe position in case of power failure
5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through a switch.
Overheating protection temperature at 220°C
Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
Patented condenser (cooling surface 1700cm²) with excellent cooling effect
Ejection mechanism ensures easy removal of evaporating flask
Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
Remote function provides PC control and data transmission

Specifications	REV100-P
Motor Type	Brushless DC motor
Speed Range	20rpm-280rpm
Display	LCD (speed, temperature, time)
Clockwise and Anti-clockwise	Yes
Heating Temperature Range	Room temp. to 180℃
Control Accuracy	water: ±1℃ oil: ±3℃
Heating Power	1300W
Stroke Displacement	automatic 150mm
Timer	Yes
Time Setting Range	1-999min
Dimension (D×W×H)	465×457×583mm
Weight	37kg
Package dimensions	1100600650mm
Gross weight	39kg
Permissible Ambient Temperature	5℃-40℃
Permissible Relative Humidity	80%RH
Protection Class	IP20
USB Interface	Yes
Voltage/Frequency	100V-120V/200V-240V 50Hz/60Hz
Power	1400 W

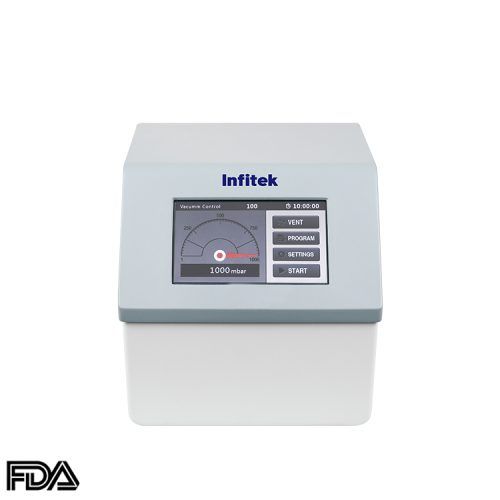

Supporting products	REV100-P+ Diaphragm Vacuum Pump VACP-D410+Low Temperature Circulator RECL20-4.5+Vacuum Controller VACC100
