- Electrophoresis main tank(main body): 1
- Concave glass plate: 2
- Flat glass plate: 2

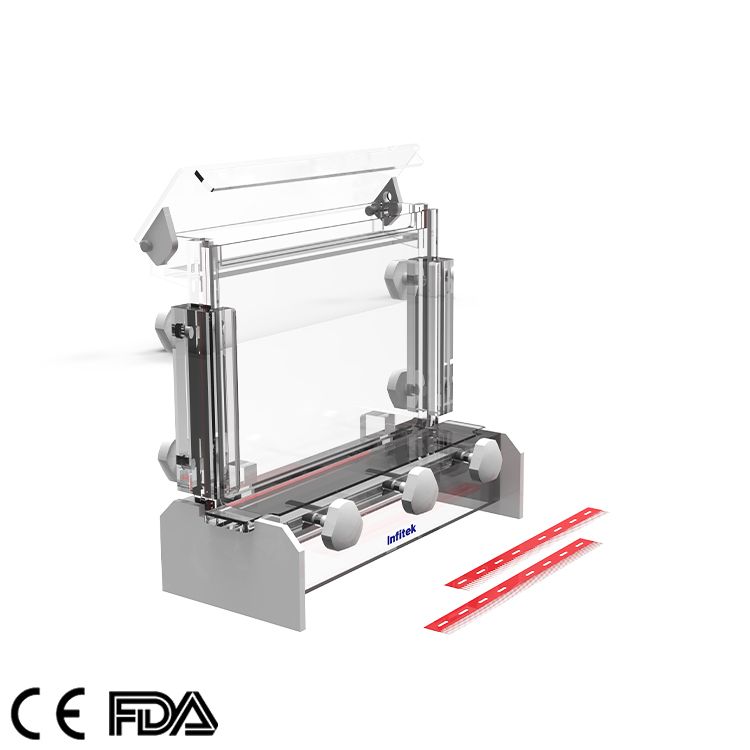

Sequencing Electrophoresis Tank, GEP-SH-CX02
Description
Purpose: This product is suitable for experiments such as SSR, SSCP, HA, DNAFOOTPRINTING, etc.
Features
1.This product adopts the buffer cooling method; the gel temperature is uniform; the bands are neat and not deformed. High-power electric field electrophoresis can be used to shorten the electrophoresis time.
2.Large sample volume: 96 PCR samples can be electrophoresed at one time, which improves work efficiency.
3.The high-quality red shark tooth comb is easy to observe and load the sample, and it is not easy to cross the sample.
4.Multiple fastening methods ensure no leakage.
5. The buffer outlet of the upper tank and the movable lower tank are convenient for removing the buffer.
6.The upper and lower tank covers are designed to open the cover and cut off the power to ensure the safety of the experiment.
7.99.99% high purity platinum electrode has the best conductivity, corrosion resistance and aging resistance.
Specifications
| Basic parameters | |
| External dimensions(L×W×D) | 430*180*360 |
| Gel area(W×L) | 340mm*300mm |
| Sampling comb | 68, 100 teeth (The gun for adding samples can be used.) |
| Glass area | 380mm*320mm |
| Total buffer capacity | about1500ml. |
| Name | Specification | Quantity |
| Electrophoresis main tank(main body) | 1 | |
| Concave glass plate | 2 | |
| Flat glass plate | 2 | |
| Shark tooth comb | 100 teeth | 2 |
| 68 teeth | 2 | |
| Filler strip | 4 | |
| Wire | 2 | |
| Water pipe | 1 |
