- Max. stirring quantity [H2O]: 20L; 40L
- Speed range: 50~2200rpm; 50~2200rpm
- Max. torque: 40N·cm; 60N·cm
- Viscosity max.: 10000mPa·s; 50000mPa·s

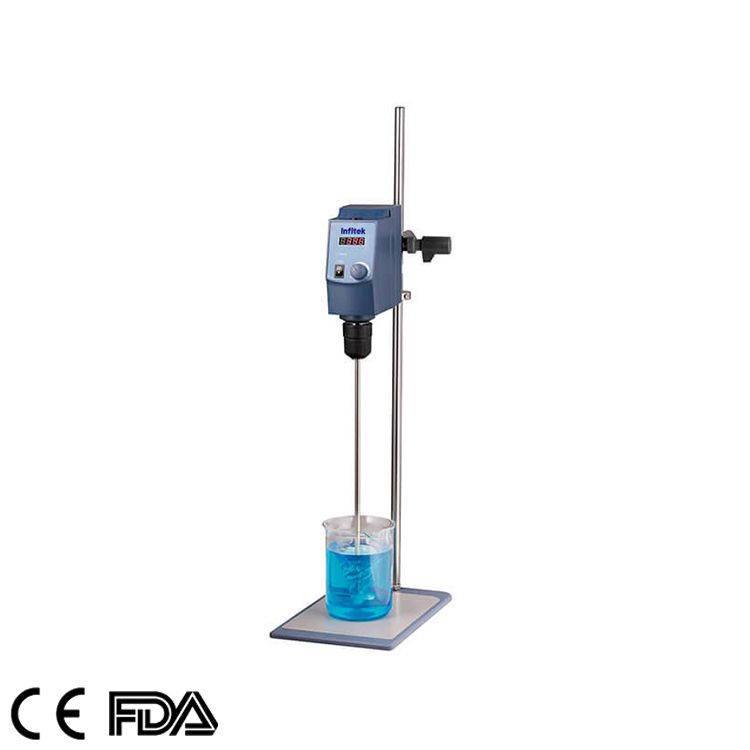

Stirrer, LED Digital, Overhead Type, OHS Series
Description

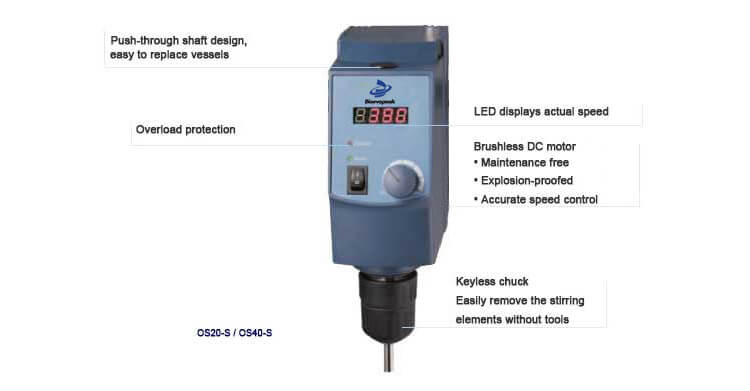

Features
1. High reliability and outstanding performance
2. A wide range of speed from 50 to 2200rpm
3. Brushless DC motor for long life, maintenance free and explosion proof
4. LED screen for monitoring actual speed
5. Safety circuits allow for safe stop function in anti-stall or overload conditions
Specifications
| Specifications | OHS-20 | OHS-40 |
| Max. stirring quantity [H2O] | 20L | 40L |
| Speed range | 50~2200rpm | 50~2200rpm |
| Max. torque | 40N·cm | 60N·cm |
| Viscosity max. | 10000mPa·s | 50000mPa·s |
| Weight | 2.8kg | 2.8kg |
| Motor type | Brushless DC motor | |
| Speed display | LED | |
| Overload protection display | LED | |
| Chuck range diameter | 0.5~10mm | |
| Motor input power | 60W | 120W |
| Motor output power | 50W | 100W |
| Power | 70W | 130W |
| Voltage | 100~240V, 50/60 Hz | |
| Dimension [WxHxD] | 83 x 220 x 186mm | |
| Protection class | IP21 | |
| Permissible ambient temperature and humidity | 5~40°C, 80%RH | |
