- Detector: NDIR
- Parameters: TC, TIC, TOC, NPOC
- Measurement Range: 0-10000mg/l (ppm)
- Detection Limit: 50μg/l (ppb)
- Gas Requirement: Nitrogen ≥99.995%
- Automatic leaking check system
- Flow rate controlling system
- Method: Wet Chemical Oxidation by UV

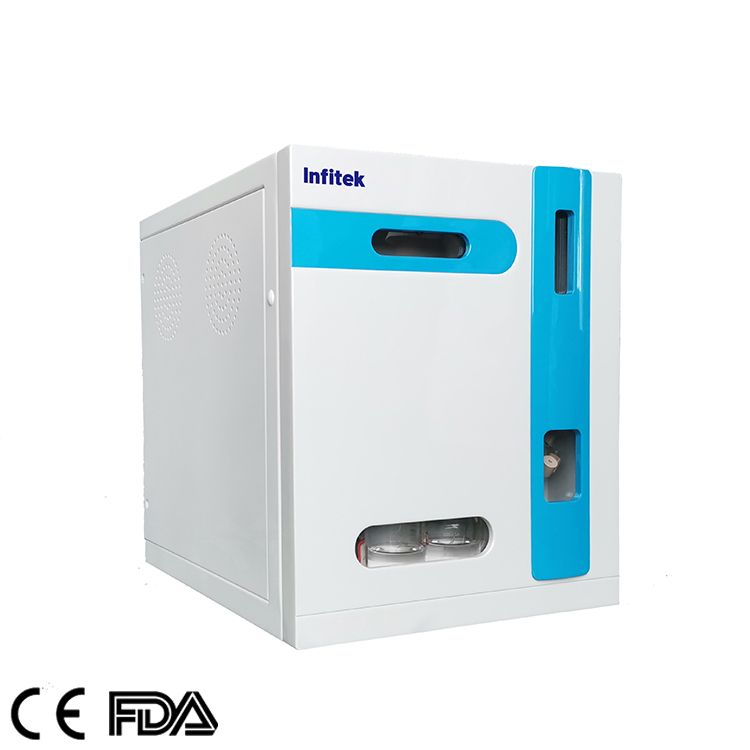

TOC / Total Organic Carbon Analyzer, TOC-M3000
Description
Total Organic Carbon Analyzer / TOC Analyzer
1. Signal management system with our own patent law which has great advantages of online setting, real-time monitoring, self-testing and flow speed control to ensure high performance and safe operation.
2. Low current system design also ensures operation safety.
3. Different temperature setting for various samples ensures complete sample digestion so as to get more accurate measuring data.
4. Adjust cooling module power according to sampling volume which improves drying performance to ensure dry gas into the detector.
5. Automatic leaking check system to avoid operation mistakes, also improves instrument performance and ensures operation safety.
6. Flow rate controlling system to avoid any effect caused by flow rate fluctuation which ensures accurate data.
7. TOC detector with 24 bits data solution extends monitoring range.Controlling system with 32bin processing technology greatly improves performance.
Specifications
| Model | TOC-M3000 |
| Detector | NDIR |
| Parameters | TC, TIC, TOC, NPOC |
| Method | Wet Chemical Oxidation by UV |
| Operation Mode | PC Control |
| Application | Liquid Sample |
| Gas Requirement | Nitrogen ≥99.995% |
| Measurement Range | 0-10000mg/l(ppm) |
| Detection Limit | 5μg/l (ppb) |
| Repeatability | 3% |
| Maximum Salinity | 85g/l |
| Power | AC220V, 50Hz or AC110V, 60HZ, 200W |
| Size | 430*455*440mm |
