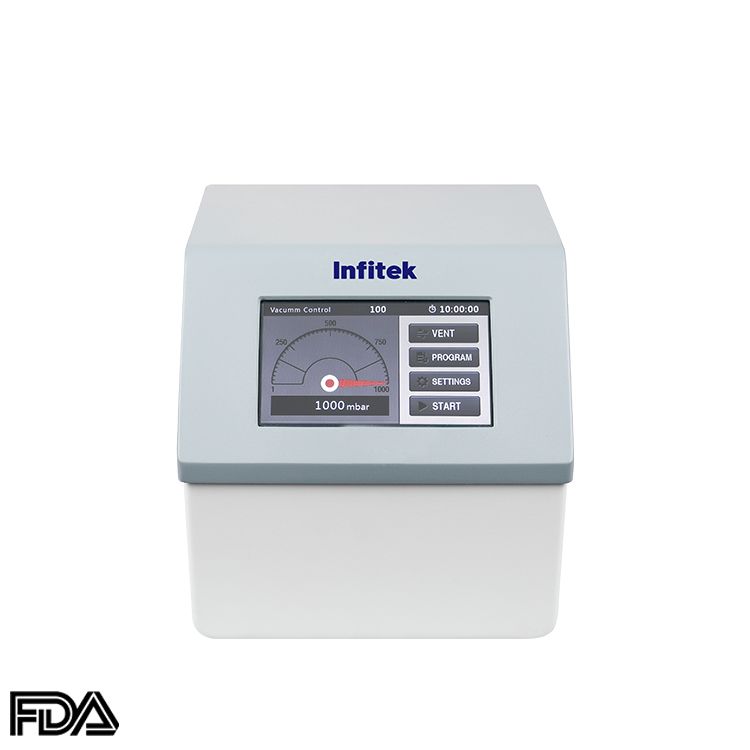

Vacuum Controller, VACC100

Description

A wide range of measurement and control, 1-1,000mbar.
Two control modes of single-point control and programmed controlavailable for choice as needed.
Can store up to 5 programs, each containing up to 5 segments ofprogramming control.
A large-size TFT touch screen display control allows easy operation.
All parts in contact with vapor or liquid are made of PTFE, ceramicsor other high-performance materials and can effectively resistcorrosion caused by organic solvents, water, acid and alkali.
A built-in vent valve can feed inert gas into system equipment.
One-stroke decompression allows easy installation and dismantlingof vacuum system.
Can be connected with pump power control for temporaryshutdown of pump power supply after reaching stable degree ofvacuum for energy conservation and environmental protection. Can also be operated in the normally open statue of pump.

Specifications	VACC100
Vacuum setting range	1-1000mbar
Vacuum measurement range	1-1000mbar
Control operation mode	Single-point control mode, Programmed control mode
Control program	Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)
Setting method	Touch screen setting
Display	5” TFT
Sensor overload pressure	1,500 mbar
Connector diameter	8mm
Materials in contact with vapor	PTFE, PP, silicone and ceramics
Power	600 W
Compatible conditions with vacuum pump	power of 50Hz vacuum pump ≤400W power of 60Hz vacuum pump ≤500W
Overall dimensions (W×D×H)	189mm×207mm×193mm
Weight	4.0kg
Power supply	110V-240V,50Hz/60Hz
Operating environment	10℃～40℃，≤80%RH
