- Filter Bottle: 250mL,1000mL
- Gas Flow: 26L/min
- Vacuum Degree: 0.09Mpa
- Ambient Temperature: 5℃~30℃

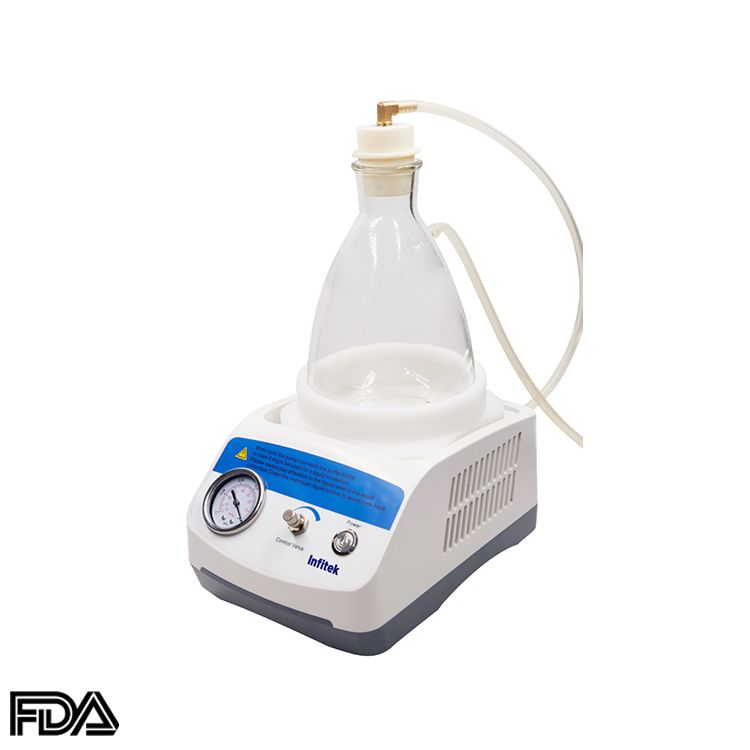

Vacuum Suction Machine, VACP-26, VACP-26D
Description
Our vacuum suction system is a benchtop, contamination free vacuum equipment, portable and easy to operate.
This system combined by a vacuum pump and a collection bottle, which is widely used for sample aspiration or collection in biochemistry and medical engineering experiments like centrifugal liquid supernatant or sediment, Elisa plate washing and biochemical analyzer liquid.
Features
- Small and beautiful, small volume and large use, low noise.
- Motor drive with low power consumption.
- Oil-resistant pump membrane improvespump performance and anti-vibration.
- Adjustable pressure 0~0.09Mpa, air release valve.
Specifications
| Model | VACP-26 | VACP-26D |
| Max. Filter Bottle | 250mL | 1000mL |
| Gas Flow | 26L/min | |
| Vacuum Degree | 0.09Mpa | |
| Pressure | 0~0.09Mpa | |
| Ambient Temperature | 5℃~30℃ | |
| Relative Humidity | ≤ 70% | |
| Power | 60W | |
| Electricity | AC100~120V/AC200~240V 50~60Hz | |
| Dimension(W*D*H) | 195*275*165mm | |
| N.W./G.W. | 4.7kg/6.7kg | |
| Shipping Dimension(L*W*H) | 400*380*290mm | |
Remarks
- Please pay attention to the liquid volume in collection bottle, discharge when it reaches max. line to avoid suck-back.
- Don’t keep it working over than 30min, turn off the equipment when it warms up.Restart when it cools down.
- After finishing experiment, vent residual gas from pump to extend equipment life. The trapped air in pump may damage pump.
