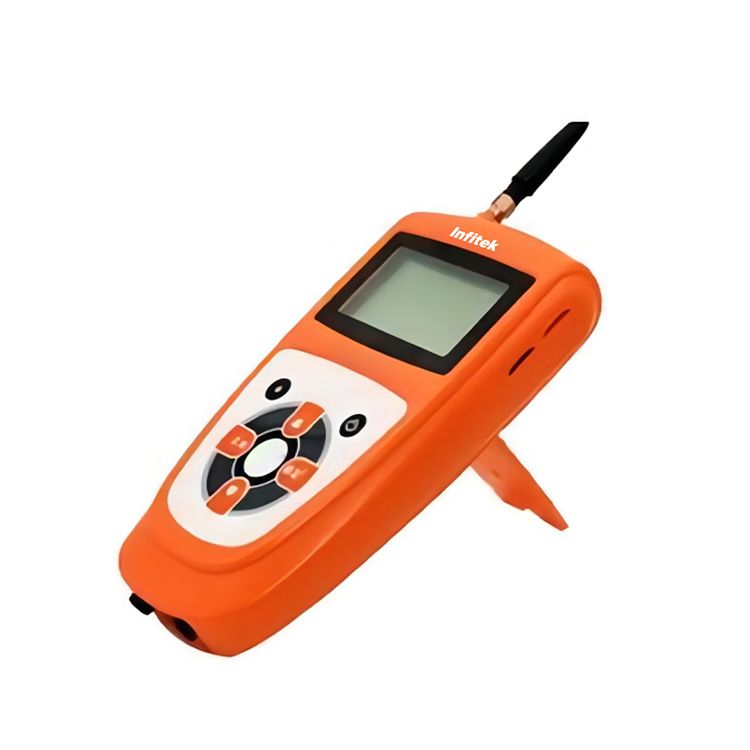

Weather Monitor System, Handheld Type, BAWM series

Description

Handheld Agricultural Weather Monitor is able to acquire real-time data of air temperature, humidity, light intensity, PAR, wind direction &speed, Rainfall, CO₂ concentration, soil temperature, soil moisture, soil pH, soil salinity etc., It is widely used in facilities agriculture, forestry, horticulture, animal husbandry and other fields.

Characteristics

Large LCD display, touch key, smart and portable, easy to operate.
One-button switch, can record both manually and automatically.
Both AC and DC are available, 8.4v 1500mAh Li-ion battery, with charging protection, Low voltage protection.
With 32 channels, Different sensors can be combined freely.
RS485 communication, the cable is up to 10Ometers.
Parameters freely switched. Sampling interval time of each sensor can be set separately.
PC software available.
GPS is optional function.
Two colors for optional: blue and orange.

Handset technical parameters:

Record capacity: flash storage your latest 30,000 records, with 4G SD card Record time interval: 5s-90 hr continuously adjustable.
Longitude: 0-180°
latitude:0-90°
Sensor communication: RS485
Power: 8.4V Li-Ion battery

Specifications

Technical parameters (OPTIONAL)

Testing index	Parameter	Testing index	Parameter
Temperature	range:-40°C-80°C accuracy:±0.4°C resolution:0.1°C	Rainfall	range:0-4mm/min accuracy:±0.1mm resolution:0.1mm
Humidity	range:0-100%RH accuracy:±3%RH resolution: 0.1%RH	Co₂	range:0-2000PPM Volatility:±(50PPM+Measurements✖3%) resolution:1PPM
Dew Point	range:-40°C-120°C accuracy:±0.4°C resolution:0.1°C	Light intensity	range: 0-200000LUX resolution: 1LUX accuracy:±2% (0-20000lux)
Soil salinity	range: 0-19.99ms/cm accuracy: ±2%	Soil Temperature	range:-40°C-100°C accuracy:±0.3°C resolution:0.1°C
Soil compaction	range:0-100kg accuracy:±0.5%o F.S	Soil Moisture	range:0-100% accuracy: ±3% resolution:0.1%
PAR	range:1 -2,700umolm-2s-1 accuracy:±1umolm–2s-1 resolution:1umolm-2s-1	Soil pH	pH range: 1-14pH pH accuracy: ±0.5
Wind Direction	range:0-359° accuracy:±3°	Wind Speed	range:0-45m/s accuracy:±(0.3+0.03v)m/s
Air pressure	range: 300.0hPa-1100.0hPa Accuracy: ±1hPa	Total radiation	range: 0-2000W/m² Accuracy: 7-14uv/W✖m²
Water vaporization	range: 0~100mm Accuracy: 0.1mm	UV radiation	range: 0-6mW/cm² Accuracy: ±5% (0*3mW/cm²)

Model difference

BAWM-4	temperature, humidity, Illuminance, CO₂ concentration
BAWM-5	temperature, humidity, Illuminance, CO₂ concentration, PAR
BAWM-6	soil temperature, soil moisture, temperature, humidity, light intensity, CO₂ concentration
BAWM-7	soil temperature, soil moisture, temperature, humidity, light intensity, CO₂ concentration, PAR
BAWM-8	soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO₂ concentration, PAR
BAWM-9	soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO₂ concentration, PAR, soil pH
BAWM-10	soil temperature, soil moisture, temperature, humidity, light intensity, CO₂ concentration, PAR, wind speed and wind direction, rain gauge
BAWM-11	soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO₂ concentration, PAR, wind speed and wind direction, rain gauge, soil pH
BAWM-12	soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO₂ concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction
BAWM-13	soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO₂ concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction, global solar radiation
